Extract System

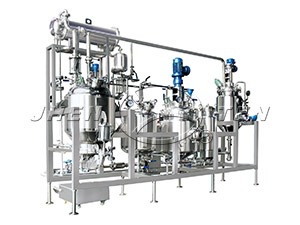

TNH-Z Extract concentrat and recovery skid

Share to:

It has successfully enter into the international market because of multi-function, good performance, compact structure, and superior manufa...

Detail Description

Features

1. the group consists of distilling pot, pipe heater, evaporator, cooler, oil separator, oil collector, medicine liquid pump, weighting vent, liquid storage pot, filter, vacuum pump, and electric box. Deformers are fixed in the steam outlet of the distilling pot and evaporator. The units without steam heating can be fixed with oil heating system.
2.It can operate to hot recycling distill and condense, normal distill, condense, deposit and seep.
3.It can work in the condition of minus pressure, normal pressure, and plus pressure. It can apply to distill water, ethanol and solvent, up to GMP standard.
4.The group has great advantages in multi-function, high efficiency, energy saving, and wide operation arrange. It pioneers in comprehensive capacity in nationwide; it is the pilot equipment in distilling natural herbal medicine, especially fit for research institution, universities and colleges, and factory pilot experiment, or distilling valued medicine, or low temperature fresh herbal. It has been widely used in factories.

Technical parameters

Model		JTNHZ-50	JTNHZ-100	JTNHZ-200	JTNHZ-300	JTNHZ-500
Precooling tank	Volume（L）	100	200	400	300*2	500*2
Extract tank	Volume（L）	50	100	200	300	500
	Jacket Pressure（Mpa）	0.3
	Motor (kW)	/			1.1	1.5
Storage tank	Volume（L）	50	100	200	300	500
	Jacket Pressure（Mpa）	0.3
	Motor (kW)	0.25	0.25	0.37	0.55	0.75
Evaporator	Evaporation（Kg/h）	40	70	125	200	300
	Heat area (M2)	0.6	1.2	2.4	3.8	5.7
	Cooling area (M2)	1.7	3.5	7	9.7	14.5
Liquid pump	Motor Power (kW)	0.55
Vacuum pump	Motor Power (kW)	1.5	1.5	1.5	2.2	3
Steam	Consumption (Kg/H)	35	55	100	140	210
Size	Dimension(mm)	25009002000	30009002400	360010002600	450011002800	600014003200
