Filtration Equipment

JTGSF  Multi Fluid Industrial Filter Housing

JTGSF Multi Fluid Industrial Filter Housing

    Share to:

High flow industrial-grade filter
JTGSF  Multi Fluid Industrial Filter Housing is precision filter which is specially designed for indust...

Detail Description

JTGSF  Multi Fluid Industrial Filter is precision filter which is specially designed for industrial field ,  It can be applied for various chemical materials and meet the requirements of different flow.

The filter housing using side entry & bottom out flow method, it ensure that the material liquid does not overflow when replace cartridge in process.The filter housing can be design to three-stage structure, shell can be opened from top and bottom,the filter can be absolutely disassemble. For the application of some very harsh cleaning,the filter can full angle cleaning.

JTGSF  Multi Fluid Industrial Filter Housing use many times polishing process, ensure that the material liquid contact surface Ra reached 0.6μm close to the sanitary requirement , the filter polished is mirror polished. It can be applied in high precision liquid filtration.




Feature

Filter can be made into the form of top and bottom openings, that is convenient to replace the filter, and can achieve thorough cleaning
The filter faceplate can be made into a detachable type, to achieve thorough cleaning
Equipped with two drain vent, respectively in the top of the disk and the bottom of the filter, drain convenient and completely
Side in and bottom out ,this design to ensure that the liquid can be completely drain, at the same time using the tangent export options, making sewage discharge thoroughly, worker is easy to Operating
More than 15 cartridges filter housing can used the design of  swing arm + eyebolt or quick-open , easy to Operating, economical and practical


Application
Water Finish: all kinds of water filtration
Food &beverage: wine, mineral water, drinking water filtration
Chemical industry: all kinds of organic solvents, acid, alkali, filtration



Surface Finish

Treatment Type

Mechanical polishing,
electrolytic polishing

polishing precision

Inner surface Ra≤0.6μm ,
Outside surface Ra≤0.8μm.


Operating Conditions

Max Operating pressure

0.6MPa、1.0MPa

Max Operating Temp.

150℃


Material

Filter shell

304, 316L

Vent valve , drain valve

304, 316L

Eyebolt

304

Stabilizer blade

304

O-ring

EPDM, PTFE, Viton, Silicone


Connection

Shell connection

Flange (Eyebolt)

In-outlet N1, N2

Tri-clamp

Pressure gauge N3

1.5”Tri-clamp

Vent valve N4 (optional)

1/2” Tri-clamp (less than 12pcs)
1.5” Tri-clamp (more than 15pcs)

Drain valve N5(optional)

1” Tri-clamp

Cartridges connection

222 type, 226 type, DOE type

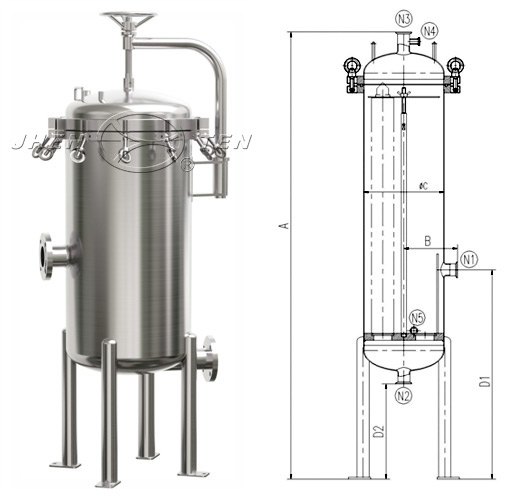

Structure


DOE type cartridge


Dimension Parameters

3pcs(4pcs)

5pcs(6pcs )

20”

30”

40”

20”

30”

40”

A:Total height ( excluding pressure gauge)

1123

1373

1623

1145

1395

1645

B:The distance from inlet to center

142

165

C:Diameter

Φ204

Φ250

D1: The height from inlet N1 to the ground

540

660

D2:The height from outlet N2 to the ground

300

300

In-outlet N1, N2 dimension

1.5”/2”

1.5”/2”/2.5”


7pcs

8pcs

20”

30”

40”

20”

30”

40”

1145

1395

1645

1170

1420

1670

176.5

190

Φ273

Φ300

660

660

300

300

1.5”/2”/2.5”

1.5”/2”/2.5”/3”


9pcs(10pcs)

12pcs(11pcs)

20”

30”

40”

20”

30”

40”

1170

1420

1670

1170

1420

1670

202.5

215

Φ325

Φ350

660

660

300

300

1.5”/2”/2.5”/3”

1.5”/2”/2.5”/3”

The above-mentioned data is the standard, it can customize according to customer's requirements

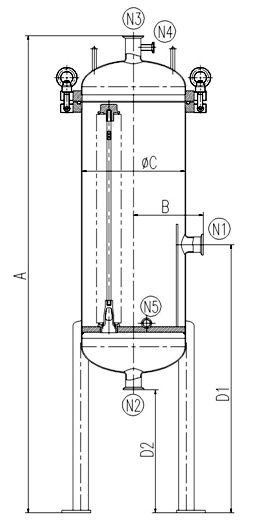

Structure

Dimension Parameters

3pcs(4pcs/5pcs)

6pcs

20”

30”

40”

20”

30”

40”

A:Total height ( excluding pressure gauge)

1123

1373

1623

1123

1373

1623

B:The distance from inlet to center

142

149.5

C:Diameter

Φ204

Φ219

D1: The height from inlet N1 to the ground

530

D2:The height from outlet N2 to the ground

300

300

In-outlet N1, N2 dimension

1.5”/2”

1.5”/2”/2.5”


7pcs(8pcs)

9pcs

20”

30”

40”

20”

30”

40”

1163

1413

1663

1170

1420

1670

165

176.5

Φ250

Φ273

650

300

300

1.5”/2”/2.5”

1.5”/2”/2.5”/3”


10pcs(11pcs/12pcs)

20”

30”

40”

1170

1420

1670

190

Φ300

650

300

1.5”/2”/2.5”/3”

The above-mentioned data is the standard, it can customize according to customer's requirements.

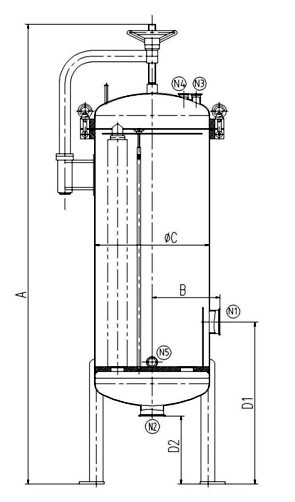

Structure



Dimension Parameters

15pcs(18pcs)

21pcs

24pcs(27/30pcs)

40”

40”

40”

A:Total height ( excluding pressure gauge)

1947

1959

2026

B:The distance from inlet to center

240

265

290

C:Diameter

Φ400

Φ450

Φ500

D1: The height from inlet N1 to the ground

682

694

714

D2:The height from outlet N2 to the ground

300

In-outlet N1, N2 dimension

3”/3.5”/4”


36pcs

42pcs

48pcs (54pcs)

40”

40”

40”

2036

2044

2067

315

340

365

Φ550

Φ600

Φ650

729

734

744

300

3”/3.5”/4”


56pcs

40”

2162

390

Φ700

808

350

3”/3.5”/4”

The above-mentioned data is the standard, it can customize according to customer's requirements.


Selection Table


[Qty.of
cartridge]

[Model
of
cartridge]

[Cartridges
connection]

[Shell
material]

[In-
outlet
Connection]

[O-ring]

JTGSF

12R

20

S

4

K

E


3R=
3pcs

21R=
21pcs

20=20”
cartridge

S=226 type

4= 304

K=Tri-clamp

E=EPDM


5R=
5pcs

24R=
24pcs

30=30”
cartridge

T=222 type

6= 316L

F=flange

P=PTFE


7R=
7pcs

36R=
36pcs

40=40”
cartridge

D=DOE type


L=
screw thread

V=Viton


8R=
8pcs

42R=
42pcs





S=Silicone


9R=
9pcs

48R=
48pcs







12R=
12pcs

56R=
56pcs







15R=15pcs
