JTGDB Lenticular Filter Housing

JTGDB Lenticular Filter Housing

    Share to:

Alternative Diatomite Filter
JTGDB Lenticular Filter Housing is a new type of stack filters can be used in place of diatomite filter, of tiny...

Detail Description
JTGDB Lenticular Filter is a new type of stacks filter,can be used in place of diatomite filter, for tiny impurities in varied kinds of liquid filtration, clarification, purification.

The structure is designed and manufactured according to the health level, internal is no dead corner and mirror polishing,it ensure no residual liquid and easy to clean.

JTGDB Lenticular Filter Housing can maximum install 4 filter stacks,it can fit for big flow requirements .


Feature
Easy to clean, the inlet/outlet can be configured special discharge valve, easy to drain.
 Easy to replace the filter stacks, reduce the filter medium leakage


Application
Microbe and solid filtration of alcohol, syrup, beer
End filtration of fruit juice and juice concentrate
Pre filtering of juice membrane filtration
Clarification of alcohol, enzyme dissolution, liquid gum, olive oil
Pharmaceutical, chemical, electronic filtration

Surface finish

Finish Type

Mechanical polishing,
electrolytic polishing

polishing precision

Inner surface Ra≤0.3μm ,  Outside surface Ra≤0.4μm.


Operating Conditions

Max Operating pressure

0.6MPa

Max Operating Temp.

150℃

Disinfect

Online or steam sterilization:
121℃/30min


Material

Shell

304, 316L, SAF2507, Carbon

Vent

304, 316L

Eyebolt

304

Stabilizer blade

304

O-ring

EPDM, PTFE, Viton, Silicone


Connection

Shell connection

Flange

In-outlet N1, N2

Flange, Quick-open,
Screw thread

Pressure gauge (option)

1.5” tri-clamp

Drain valve(option)

1” tri-clamp

Vent valve (option)

1/2” tri-Clamp

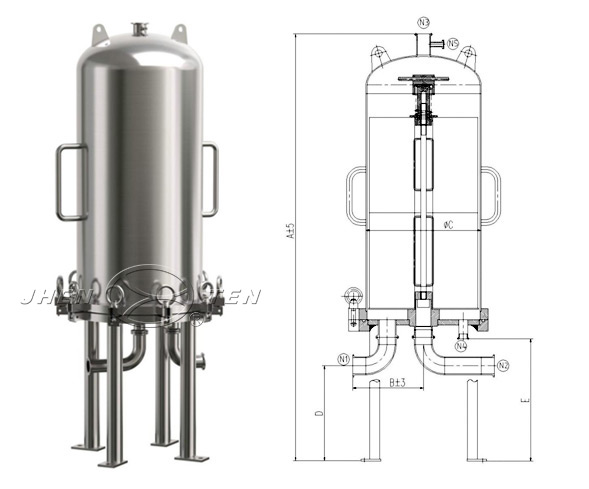

Dimension Parameters

12’’ Filter Stacks

1pcs

2pcs

3pcs

4pcs

A:Total height

950

1210

1490

1760

B: The distance from inlet to center

200

C:Diameter

Φ325

D:The height from in-outlet to ground

280

E:The height from vent valve to ground

356

In-outlet N1, N2 dimension

2”


16’’ Filter Cake

1pcs

2pcs

3pcs

4pcs

960

1230

1500

1770

250

Φ450

280

356

2”

The above-mentioned data is the standard, it can customize according to customer's requirements.


Selection Table


[Qty. of Filter Cake]

[Model of Filter Cake]

[Shell Material]

[In-outlet connection]

[O-ring]

JTGDB

1B

12

4

F

E


1B=1pc

12=12” Filter Cake

4= 304

F= Flange

E=EPDM


2B=2pcs

16=16” Filter Cake

6= 316L

K= Quick-open

P=PTFE


3B=3pcs



L= Screw thread

V=Viton


4B=4pcs




S=Silicone
