JTGDX  Single Fluid Sanitary Filter Housing

JTGDX Single Fluid Sanitary Filter Housing

    Share to:

No Dead Corner Filter

Detail Description

JTGDX  Single Fluid Sanitary Filter is high quality sanitary grade filter which service for small flow rate.

JTGDX  Single Fluid Sanitary Filter have good surface treatment and the maximum corrosion-resistant, in order to prevent the bacterial contamination, the unique structure of the sanitary filter housing ensure inside and outside surface have no dead corner and conforms to the requirements of GMP, The filter housing can completely disassemble and washing, easy to operating.


Feature

The high level of Polishing, inner surface≤0.3 um Ra, outside surfce can meet 0.4 um, it is absolute hygienic level polishing
Useing strong Quick-open design, the highest operate pressure up to 1.0MPa
Special vent valve and drain valve: thread sleeve and the tower joint keep separate, the connect hose can not rotate during pressure elease and fluid discharge
The legs of filter useing strengthening screw, not easy to be slided, more durable; the bottom of the legs can option install adjusting screw , can adjust the height of the filter, it is convenient to use.


Application

The pharmaceutical industry: pre filter various antibiotics liquor
Food and beverage industry: alcohol, mineral water, drinking water filtration
oil industry: oil field water injection filter
Electronic Industry: high purity water pre filtration
Chemical Industry: all kinds of organic solvent, acid, lye filter


Surface Finish

Finish Type

Mechanical polishing, Electrolytic polishing, Sand blasting, pickling

Polishing precision

Inner surface Ra≤0.3μm ,  Outside surface Ra≤0.4μm.


Operating Conditions

Max Operating pressure

0.6MPa、1.0MPa

Max Operating Temp.

150℃

Disinfect

Online or steam sterilization:
121℃/30min


Material

Shell

304, 316L

Vent valve

304, 316L

Quick-open

304

Stabilizer blade

304

O-ring

EPDM, PTFE, Viton, Silicone


Connection

Shell connection

Tri-Clamp

In-outlet N1, N2

Tri-Clamp

N3Pressure gauge (optional)

1.5” Tri-clamp

N4Vent valve (optional)

Φ6 Screw thread

N5Drain valve (optional)

Φ6 Screw thread

Cartridges connection

222型, 226型


Structure

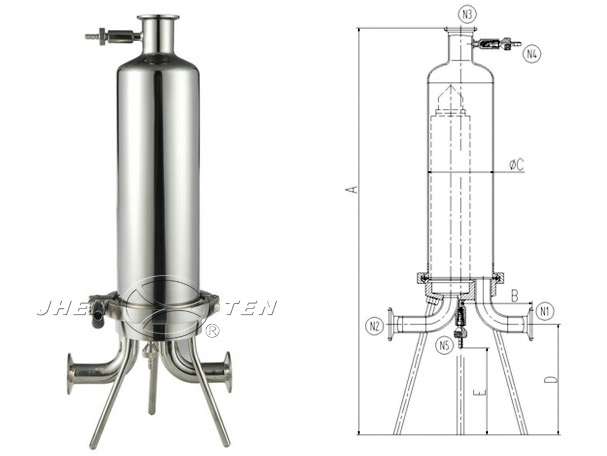

Dimension Parameters 1pc
5” 10” 20” 30”
A:Total height 490 615 865 1115
B:The distance from inlet to center 110
C:Shell diameter Φ101.6
D:N1, N2 The height from in-outlet to ground 170

The above-mentioned data is the standard, it can customize according to customer's requirements.


Selection Table

  [Qty. of Cartridge] [Model of Cartridge] [Cartridges connection] [Shell Material] [In-outlet connection] [O-ring]
JTGDX 1R 20 S 4 K E
  1R=1pc 5=5” Cartridge S=226 type 4= 304 K= Tri-clamp E=EPDM
    10=10” Cartridge T=222 type 6= 316L   P=PTFE
    20=20” Cartridge       V=Viton
    30=30” Cartridge       S=Silicone
