Tea Extraction Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmosphe...
Tea Extraction Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements.

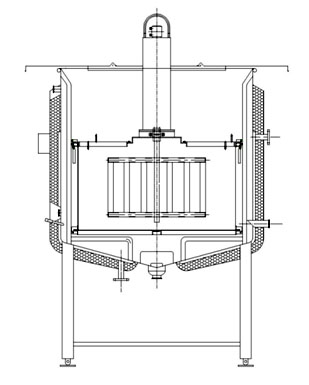

Tea Extraction Tank usually uses vertical circular tank body, the top is an open structure, the bottom is standard conical head,inner wall of tank adopts circular arc transition, no dead corner, easy to clean; tank body and the bottom head is equipped with the jacket and insulation layer, tank inner wall are mirror polished, meet the sanitary standard.
Tank Optional Configuration
Tea Extraction Tank optional Configuration: thermometer (digital or mechanical type), sight glasses, in-outlet connector, or configured according to customers' requirements.
Application
• Suitable for the extraction of tea, Chinese herbal medicine and other plants.
Feature
• There are 1000L,2000L,3000L varietys of specifications, it can be designed, customized according to the customers' requirements.
• Connector use tri-clmap, inner tank and basket use SS304 or SS316L, the inner surface mirror polishing Ra≤0.28μm～0.6μm, outer surface can be polishing, wiredrawing ,sandblasting according to customer's requirement.
Design Parameter
|
Design pressure |
ATM |
|
Design temperature |
According to the customers' requirements（0℃～160℃） |
Material
|
Inner |
304、316L |
|
Basket |
304、316L |
|
Insulation |
Rock wool （keep warm） |
|
Feet |
304 |
Connection
|
In-outlet |
Tri-clamp ,Flange |
Surface Finish
|
Finish type |
Mechanical polishing, electrolytic polishing, |
|
Polishing precision |
Inner surface Ra≤0.4μm |
Normal Model And Main Technical Parameters
|
Parameters |
Model |
JTRCC—1000 |
JTRCC—2000 |
JTRCC—3000 |
|
|
Effective volume：L |
1000 |
2000 |
3000 |
||
|
Barrel |
Diameter ：mm |
Φ1100 |
Φ1500 |
Φ1750 |
|
|
Height ：mm |
1000 |
1500 |
1520 |
||
|
Basket |
Diameter：mm |
Φ900 |
Φ1300 |
Φ1560 |
|
|
Height：mm |
500 |
750 |
760 |
||
|
The above-mentioned data is the standard ,for reference only. it can customize according to customer's requirements. |
|||||
