Storage Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pre...
Storage Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements.
Storage Tanks usually adopt vertical circular tank body, the top is standard elliptic or torisphericalhead,the bottom is standard conical,torispherical or elliptic head, inner wall of tank body transition section adopts circular arc transition, no dead corner, easy to clean; Single layer, double layer (tank body and the bottom head is equipped with insulation layer) or jacket type (tank body and the bottom head is equipped with the jacket and insulation layer),It can be customized for customers,Tank inner surface mirror polished, can realize the CIP and SIP, meet the GMP standard.
Usually Storage Tank structure is vertical structure or horizontal structure, it also can be designed in square and circular shapes accoding to customers' requirements; Configuration of mechanical mixing.
Tank Optional Configuration
Storage Tank optional configuration: sterile air filter, thermometer (digital display type or dial),, pressure gauge, sight glass, sanitary manhole, in-outlet, CIP universal rotating cleaning ball, liquid meter etc, Or configured according to customers' requirements.
Application
• suitable for the pharmaceutical industry of pure water storage, injection water storage, liquid storage, intermediate buffer;also applies to normal temperature and warming storage of the food, milk, juice etc.
Feature
• There are 600L~20000L varietys of specifications, it can be designed, customized according to the customers' requirements.
• Insulation material is rock wool(keep warm)or PU(keep cool).
• Connector use tri-clamp, inner tank use SS304 or SS316L, the inner surface mirror polishing Ra≤0.28μm~0.6μm, outer surface can be polishing, wiredrawing ,sandblasting according to customer's requirement.
Design Parameter
Design pressure |
ATM~1.0MPa |
Design temperature |
According to the customers' requirements(0℃~160℃) |
Material
Inner |
304、316L |
Insulation |
Rock wool(keep warm) |
PU(keep cool) |
|
Feet |
304 |
Surface Finish
Finish type |
Mechanical polishing, electrolytic polishing, |
Polishing precision |
Inner surface Ra≤0.3μm |
Connection
In-outlet |
Tri-clamp ,Flange |
Storage Tank Structure

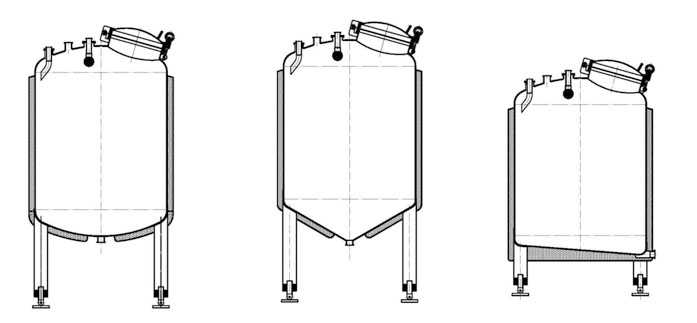

Vertical type Storage Tank A series Vertical type Storage Tank B series Vertical type Storage Tank C series
(double layer) (double layer) (double layer)

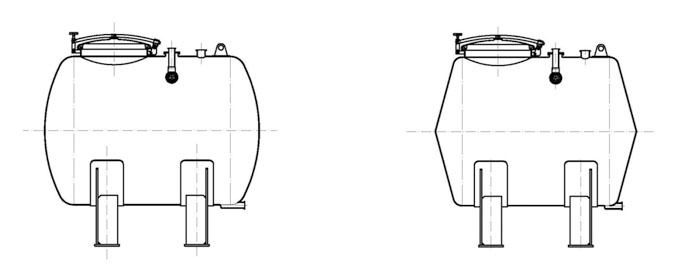

Horizontal type Storage TankA series (single layer) Horizontal type Storage Tank B series(single layer)

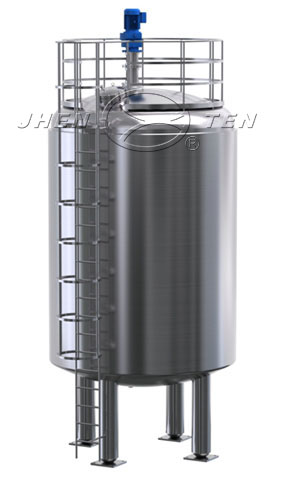

Mixing Storage Tank Structure
Vertical type mixing Storage Tank A series Vertical type mixing Storage Tank B series Vertical type mixing Storage Tank C series
(jacket type) (jacket type) (jacket type)
Normal Model And Main Technical Parameters
Parameters |
Model |
JTRCG—600 |
JTRCG—1000 |
JTRCG—2000 |
JTRCG—3000 |
JTRCG—4000 |
JTRCG—5000 |
|
Effective volume:L |
600 |
1000 |
2000 |
3000 |
4000 |
5000 |
||
Barrel |
Diameter :mm |
Φ900 |
Φ1100 |
Φ1300 |
Φ1600 |
Φ1700 |
Φ1800 |
|
Height /length:mm |
900 |
1000 |
1500 |
1500 |
1800 |
1800 |
||
Mixing |
Motor power:KW |
1.1 |
1.5 |
2.2 |
2.2 |
3 |
4 |
|
Mixing work RPM:r/min |
60(斜叶桨式)(The design can be adjusted according to customers’ usage) |
JTRCG—6000 |
JTRCG—8000 |
JTRCG—10000 |
JTRCG—12000 |
JTRCG—15000 |
JTRCG—20000 |
6000 |
8000 |
10000 |
12000 |
15000 |
20000 |
Φ1900 |
Φ2000 |
Φ2200 |
Φ2400 |
Φ2600 |
Φ2800 |
2000 |
2200 |
2400 |
2500 |
2700 |
3000 |
4 |
5.5 |
7.5 |
7.5 |
11 |
11 |
60(斜叶桨式)(The design can be adjusted according to customers’ usage) |
|||||
The above-mentioned data is the standard ,for reference only. it can customize according to customer's requirements. |
