Single Bag Filter Housing

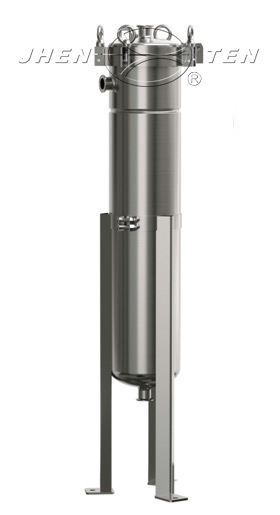

JTGCD Side Entry Bag Filter Housing, with a bag filter bag, for some coarse filtration and pre filtering process
Side entry has effectively save the filter space, the entire structure of the economic and reasonable.
By the pressure ring, a spring ring bag mouth, ensure good seal between the filter and the filter bag.
With adjustable legs, the installation size can be adjusted according to the requirements of the scene
Finish Type |
Mechanical polishing, Electrolytical polishing, Sand blasting, pickling |
Polishing precision |
Inner surface Ra≤0.6μm , Outside surface Ra≤0.8μm. |
Basket0.6μm |
Operating Conditions
Max Operating pressure |
0.6MPa、1.0MPa |
Max Operating Temp. |
150℃ |
Material
Shell |
304, 316L, |
Eyebolt |
304 |
Stabilizer blade |
304 |
O-ring, |
EPDM, PTFE, Viton, Silicone |
Connection
Connection of shell |
Flange |
In-Outlet |
Flange, Quick-open, Screw thread |
Pressure Gauge |
1.5”(1#Bag /2#Bag) |
Vent Valve |
1/4” Male thread |
Dimension Parameters |
Cover |
|||
1# |
2# |
3# |
4# |
|
Total height |
990 |
1365 |
525 |
635 |
The distance from inlet to center |
147 |
92 |
||
Diameter |
Φ204 |
Φ204 |
Φ114 |
Φ114 |
The height from inlet to ground |
835 |
1205 |
445 |
555 |
The height from outlet to ground |
250 |
300 |
100 |
|
In-outlet size |
1.5” or 2” |
1” or 1.5” |
||
Stabilizer blade |
500 |
800 |
300 |
400 |
Max flow, m3/h |
20 |
40 |
6 |
12 |
The above-mentioned data is the standard, it can customize according to customer's requirements. |
Selection Table
|
[Qty. of Bag Filter] |
[Model of Bag Filter] |
[Shell Material] |
[In-outlet connection] |
[O-ring] |
|
JTGCD |
1P |
2S |
4 |
F |
E |
|
|
1P=1pc |
1S=1# Bag:Φ180 x 430 |
4= 304 |
F= Flange |
E=EPDM |
|
|
|
2S=2# Bag:Φ180x 810 |
6= 316L |
K= Tri-clamp |
P=PTFE |
|
|
|
3S=3# Bag:Φ105 x 230 |
|
L=Thread |
V=Viton |
|
|
|
4S=4 Bag #:Φ105x 380 |
|
|
S=Silicone |
Welcome to send an online inquiry! If you have any suggestions or questions about our products, you can Email us.info@jhenten.com, also feedback through this inquiry; we will reply to you within 24 hours. (Monday to Friday, 9:00-17:30)
