JTGTB Precision titanium stick filter

JTGTB Precision titanium stick filter

    Share to:

Metal powder backwash filter

Detail Description

JTGTB Precision titanium stick filter suitable for filtering the high temperature ,high pressure and high solid content of the material .Filter adopts back washing method, can be continuous and automatic operation, avoid frequent manual cleaning and unnecessary stops; and maximize reduce pollution to the environment caused by filter and residue.

Precision titanium stick filter can remove heterochromia, odor and mercury, lead, cadmium, zinc, iron, manganese,and chromium etc heavy metal material in water, also can remove the arsenic , hydride , sulphide, residual chlorine etc high molecular compound and strontium, radium etc radioactive substances in water, kill and remove the bacteria and e.coli and other carcinogens in the water; Widely used for solid-liquid separation of food,beverage ,pharmaceutical,chemical etc industry.especially in the pharmaceutical industry is suitable for the decarburization filtration of transfusion injection production line


Feature

• TPF-A with performance of resistance to high temperature, high pressure ,strong acid, strong alkali, corrosion resistant. through acid and alkali washing ,soaking can be repeated use.


Application

• Electronics industry: electronic, microelectronics, semiconductor industry water etc filtration.
• Pharmaceutical industry: pharmaceutical raw materials,Solvent liquid, decarburization filtration of material etc filtration.
• Chemical industry: organic solvent, chemical reagents, liquid materials, catalyst etc filtration.
• Food industry: beer, beverage, mineral water, vegetable oil, soy sauce, vinegar etc filtration.
• Oil refining industry: oilfield reflux water filtration, reverse osmosis desalination field filtration.


Surface

Finish

Treatment Type

mechanical polishing

Polishing precision

Inner wall  0.4μm,outer wall  0.6μm


Material

Filter shell

304、316L

Vent valve , drain valve

304、316L

Eyebolt

304

Feet

304

O-ring

EPDM , PTFE , Viton , Silicone


Operating

Conditions

Max operating pressure

0.6MPa

Max operating Temp.

200℃


Connection

Shell connection

Flange (eyebolt)

In-outlet

Quick -open, flange, thread

Blowoff valve

Quick -open

Pressure  gauge (optional)

Thread ,quick-open

Vent valve

Thread

Sediment

Pneumatic control self-locking type discharge door , quick-open

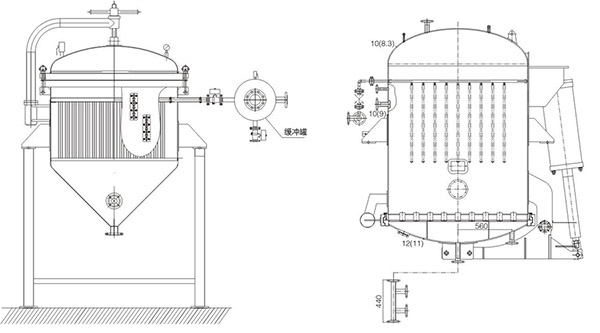

Structure



Selection


[Shell diameter]

[Shell material]

[In-outlet Connection]

[O-ring]

JTGTB

1000T

4

K

S


1000T=diameter Φ1000 Titanium rod filtration
(the same as below)

4= 304

F=flange

E=EPDM


1300T

6= 316L

K=quick-open

P=PTFE


1800T


L=thread

V=Viton


2500T



S=Silicone
