Multi-function Extraction Tank is designed, manufactured and inspected in accordance with the pressure vessel standard (GB150-2011) and the steel wel...

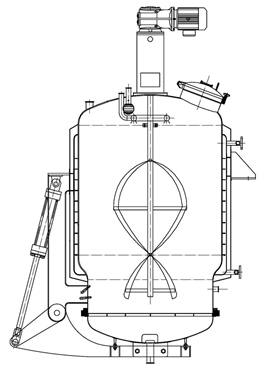

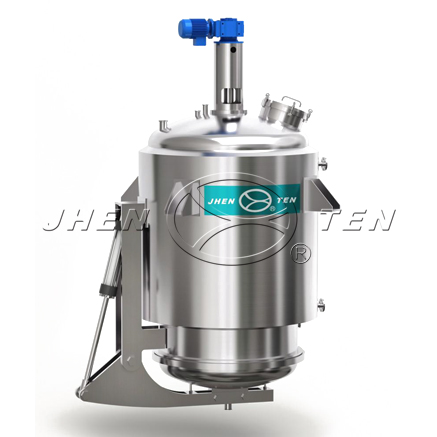

Multi-function extraction tank is a mushroom round tank. The bigger upper part provides large boiling and baffling room to process all material without leakage. The smaller lower part attribute to the quick heating advantage, short heating time and high extracting efficiency. Agitator or jacket type (tank body and the bottom head is equipped with the jacket and insulation layer) can be customized. Inner wall of tank body transition section adopts circular arc transition,, no dead corner, easy to clean; Tank inner wall are mirror polished, meeting the GMP standard.
Multi-function extraction tanks can be designed as positive conical tank, mushroom type tanks, cylindrical tanks, oblique conical tanks and inverted conical tanks according to the customers’ requirements.
Feature
• There are varieties of volume from 2000L~8000L, also it can be designed and customized according to the customers' requirements.
• Pneumatic control self-locking type discharge door ensures no leakage and it is fast and safe under the sudden electricity off and gas off.
• Connector uses tri-clamp, inner tank use SS304 or SS316L, the inner surface mirror polishing Ra≤0.28μm~0.6μm. Outer surface can be polished, wiredrawn, sandblasted according to customer's requirement.
Tank Optional Configuration
Optional Configuration: sterile air filter, thermometer (digital display type or dial), pressure gauge, sight glasses, sanitary manhole, in-outlet, CIP universal rotating cleaning ball, level gauge, etc., or configured according to customers' requirements.
Application
• Suitable for food, chemical industry, atmospheric, decoction, wet leaching, heat reflux, forced circulation penetration, aromatic oil extraction and organic solvent recovery, especiallly for Dynamic extraction or countercurrent extractio, short time and high content of material.
• Suitable for dynamic extraction of tea, herbs and other plant leaves with water as solvent medium.
Design Parameter
Design pressure |
ATM~0.8MPa |
Design temperature |
0℃~160℃) |
Material
Liner |
304、316L |
Insulation |
Rock wool (keep warm) |
Support lug |
304 |
Connection
In-outlet |
Tri-clamp, Flange |
Surface Finish
Finish type |
Mechanical/electrolytic polishing, |
Polishing precision |
Inner surface Ra≤ 0.4μm, |
Normal Model And Main Technical Parameters
Parameters |
Model |
JTRDC—2000 |
JTRDC—3000 |
JTRDC—5000 |
JTRDC—6000 |
JTRDC—8000 |
|
Effective volume:L |
2000 |
3000 |
5000 |
6000 |
8000 |
||
Tank |
Diameter:mm |
Φ1300 |
Φ1600 |
Φ1800 |
Φ1900 |
Φ2000 |
|
Height:mm |
1500 |
1500 |
1800 |
2000 |
2200 |
||
Agitator |
Power:kW |
2.2 |
3 |
4 |
5.5 |
7.5 |
|
RPM:r/min |
35(screw)(Can adjust the design according to the customer’s usage) |
The above-mentioned data is the standard. It can be customized according to customer’s requirements.
