Extract System

QN Series spherical concentrator

QN Series spherical concentrator

    Share to:

The spherical concentration tank, consisting of tank body, condenser, gas-liquid separator and liquid receiving barrel, is available to concentrate a...

Detail Description

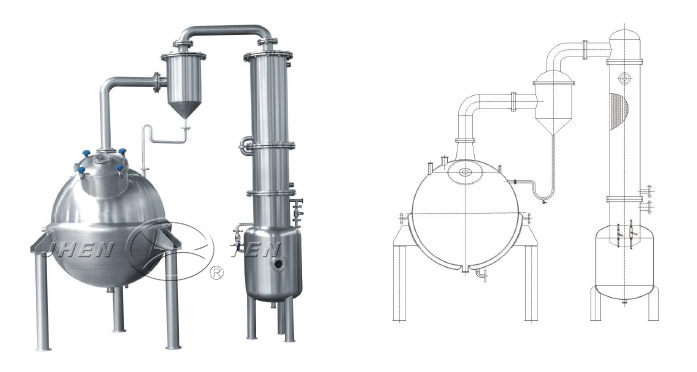

The spherical concentration tank, consisting of tank body, condenser, gas-liquid separator and liquid receiving barrel, is available to concentrate and distil the material liquid in such industries as pharmacy、food and chemistry and recycle the organic solvent.The adoption of reduced pressure concentration shortens the concentration time, avoiding the destruction to effective component inside the thermal sensitive material.

The contact part of the concentrator is made with the stainless steel, resistant to corrosion,high durable, meeting the standard of the GMP.


Technical parameters

Model QN-300 QN-500 QN-700 QN-1000 QN-1500
Evaporation capacity(kg/h) 70 120 145 195 230
Preassure in jacket(Mpa) 0.25
Vacuum degree(MPa) 0.08
Heating area(㎡) 1.3 1.6 2.7 3.1 3.3
Condensation area(㎡) 2.4 4 5 10 15
Dimensions(mm) 1900x1100x2300 2030x1200x2500 2100x1300x2600 2335x1520x2765 3000x1650x3700
Equipment weight(kg) 350 480 610 950 1150
