Mesh Type Pipe Filter

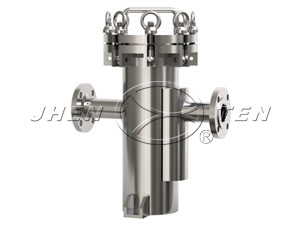

JTGLL Basket Filter is a larger pipe filter. The mesh filtration area is 2 ~ 3 times than pipe diameter area.It is suitable for the material with the highest content of impurities and the large amount of circulation.
JTGLLBasket Filter need to many times polishing process,
ensure that the material liquid contact surface Ra reached 0.6μm close to the sanitary grade requirement , the filter surface is mirror polished.
Feature
Shell inner and outer surface all used mirror polished, , ensure that the material liquid contact surface Ra reached 0.6μm close to the sanitary requirement .
Filter shell can use Eyebolt connection or quick-open connection, which is convenient for operation and economical and practical.
Application
All kinds of liquid particle filtration
Chemical filtration
Surface Finish
Treatment Type |
mechanical polishing, electrolytic |
Polishing precision |
Inner surface Ra≤0.6μm , |
Operating Conditions
Max Operating pressure |
0.6MPa、1.0MPa |
Max Operating Temp. |
140℃ |
Material
Filter shell |
304, 316L |
Vent valve / drain valve |
304, 316L |
Eyebolt |
304 |
Stabilizer blade |
304 |
O-ring |
EPDM, PTFE, Viton, Silicone |
Connection
Shell connection |
Flange (Eyebolt) |
In-outlet N1, N2 |
Flange , thread, Tri-clamp |
Vent valve N3(optional) |
3/4” male thread |
Drain valve N4(optional) |
1” male thread |
Dimension Parameters |
1 basket |
|
In-outlet 2” |
In-outlet 3” |
|
A:Total height |
500 |
580 |
B:The distance from inlet |
230 |
|
C:Diameter |
Φ6” |
|
D The height from in-outlet N1, N2 to the ground |
300 |
360 |
E:Drain port N4 height from the ground |
60 |
1 basket |
|
In-outlet 4” |
In-outlet 5” |
670 |
830 |
260 |
300 |
Φ10” |
Φ14” |
430 |
560 |
60 |
The above-mentioned data is the standard, it can customize according to customer's requirements.
选型表
|
[Qty. Of basket] |
[Model of basket] |
[Shell material] |
[In-outlet Connection ] |
[O-ring] |
JTGLL |
1L |
30 |
4 |
F |
E |
|
1L=1 basket |
20=In-outlet 2” filter basket size:Φ100×200 |
4= 304 |
F=Flange |
E=EPDM |
|
|
30=In-outlet 3”filter basket size:Φ110×250 |
6= 316L |
K=Tri-clamp |
P=PTFE |
|
|
40=In-outlet 4”filter basket size:Φ140×300 |
|
L=Thread |
V=Viton |
|
|
50=In-outlet 5” filter basket size:Φ180×400 |
|
|
S=Silicone |
