JTGKQ  Gas(Steam) Filter Housing

JTGKQ Gas(Steam) Filter Housing

    Share to:

Filter For Removing Particle In Gas
JTGKQ  Gas(Steam) Filter Housing is a high purity particle filter using with filter cartridge for removin...

Detail Description

Using with PTFE efficient aseptic filter cartridge can be used in sterile gas and fermentation gas filtration. Using with glass fiber filter cartridge, can be used in high purity gas filtration. Using with stainless steel cartridge, can solve the problem of high Temp. air filtration.

Filter connection unified designed to 226 double seal clamp type, to make the filter sealing performance is more outstanding.

Feature

Filter connection adopts 226 double seal clamp type, to ensure the sealing.
The cartridge number under 3 the filter housing can adopt quick-open, to be convenient and quick when change cartridge.


Application

The sterilization function in the field of biotechnology, medical.
Sterilizing for beverage and food, filtering steam for heating food.
Filtering dampness in laboratory such as electronics industry, biotechnology, pharmaceutical etc.


Surface Finish

Finish Type

Mechanical polishing, electrolytic polishing, sand blasting, pickling

Polishing precision

Inner surface Ra≤0.3μm ,
Outside surface Ra≤0.4μm.


Operating Conditions

Max Operating Pressure

0.6MPa, 1.0MPa

Max Operating Temp.

150℃

Sterilization

Online or steam sterilizing:
121℃/30min


Material

Filter housing

304, 316L

Vent valve

304, 316L

Quick-open

304

Stabilizer blade

304

O-ring

EPDM, PTFE, Viton, Silicone


Connection

Shell connection

Flange , Tri-clamp

In-outlet N1, N2

Flange , Tri-clamp, Thread

Pressure gauge N3
(optional)

M14×1.5 Thread
(less than 3 cartridges)
1/2” Thread
(less than 5 cartridges)

Drain valve N4
(optional)

1/4” Screw thread

Connection for cartridge

226


Dimension

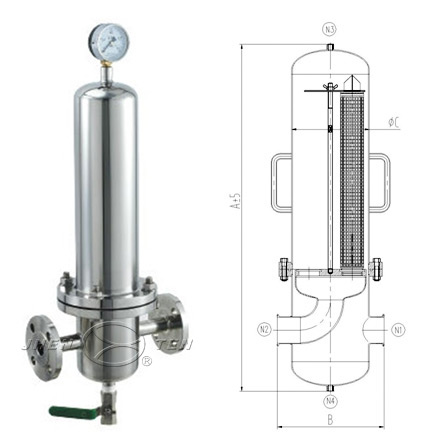

Parameters

1pc

3pcs

10”

20”

30”

40”

10”

20”

30”

40”

A:Total height
(excluding pressure gauge)

550

800

1050

1300

696

946

1196

1446

B:The distance from inlet to center

75

140

C:Diameter

Φ101.6

Φ200

In-outlet N1, N2 dimension

1”

3”


5pcs

9pcs

10”

20”

30”

40”

10”

20”

30”

40”

728

978

1228

1478

835

1085

1335

1585

140

197.5

Φ219

Φ219

3”

4”


12pcs

20”

30”

40”

1325

1575

1825

380(Flange)

Φ350

DN150(Flange)

The above-mentioned data is the standard, it can customize according to customer's requirements.


Selection Table


[Qty. of cartridges]

[Model of cartridge]

[Shell material]

[In-outlet Connections]

[O-ring]

JTGKQ

5R

20

4

K

E


1R=1pc

3R=3pcs

10=10”cartridge

4= 304

F=Flange

E=EPDM


5R=5pcs

9R=9pcs

20=20”cartridge

6= 316L

K=Tri-clamp

P=PTFE


12R=12pcs

30=30”cartridge


L=Screw thread

V=Viton



40=40”cartridge



S=Silicone
