Filtration Equipment

JTGCX Magnetic Fluid Filter Housing

JTGCX Magnetic Fluid Filter Housing

    Share to:

Fluid Pipe De-Ironing Separator

Detail Description

JTGCX Magnetic Fluid Filter Housing is applied to the fluid, semifluid and other different viscous fluid materials, remove the iron impurities and other ferromagnetic particles. To keep the material clean and protect the downstream production equipment at the same time.

JTGCX Magnetic Fluid Filter Housing using multichannel polishing processing to ensure the interface Ra reach to 0.6um close to sanitary level. All of the surface is mirror polished.


Feature
Barrel's internal and external surface using mirror polish, interface Ra reach to 0.6um close to sanitary level.
Using Flange, quick-open, eyebolt plate or quick release clamp can easy to install, take out and clean magnetic component.
Reasonable structure design can ensure the best de-ferrous effect at the same time not impede the flow of the material.


Application

Used in food and beverage, metal processing, pharmaceutical, ceramics, paper, cosmetics, fine chemical industry, etc. To protect main equipment from the destruction of the iron particles


Surface Finish

Finish Type

Mechanical polishing, electrolytic polishing, sand blasting, pickling

Polishing precision

Inner surface Ra≤0.6μm ,
Outside surface Ra≤0.8μm.


Operating Conditions

Max Operating Pressure

0.6MPa, 1.0MPa

Max Operating Temp.

150℃


Material

Filter shell

304, 316L

O-ring

EPDM, PTFE, Viton, Silicone


Connection

Shell connection

Tri-clamp(0.6MPa),
Flange(1.0MPa)

In-outlet N1, N2

Flange, Tri-clamp, Thread


Structure

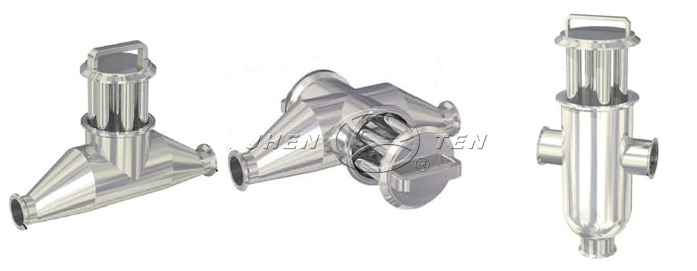

JTGCX  A series JTGCX  B series

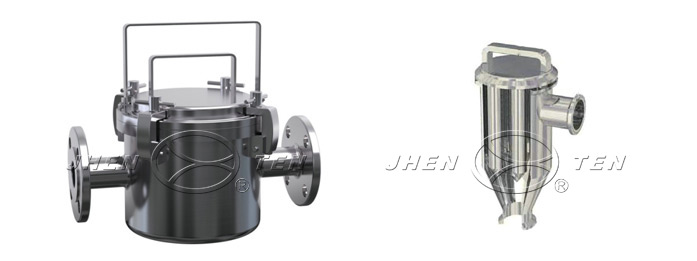

JTGCX  C series JTGCX  D series JTGCX  E series


Dimension Parameters

Diameter

Qty. of magnet

In-outlet

Magnetic bar

Diameter

Length

Φ50

1

1”/1.5”

Φ20

6”/8”/10”

Φ114

4, 5

1”/1.5”/2”/2.5”

Φ159

6, 7

1.5”/2”/2.5”/3”

Φ190

9

2”/2.5”/3”/4”

The diameter of In-outlet under 3” using quick-open, 3” and 4” using flange. it can customize according to customer's requirements. Dimension an approximate value, for reference only.


Selection Table


［Series number］

［No. of magnet］

［Magnet model］

［Shell material］

［In-outlet Connections］

［O-ring］

JTGCX

A

9R

26

4

F

S


A=A series

1R=1pc

206, 208, 210
Example：206, “2” means diameter Φ20mm, “06” means magnetic bar the length of 6”

4= 304

F=flange

E=EPDM


B=B series

4R=4pcs/5pcs

6= 316L

K=quick-installed

P=PTFE


C=C series

7R=6pcs/7pcs


L=screw thread

V=Viton


D=D series

9R=9pcs



S=Silicone


E=E series
