ZN Series vacuum decompressing concentrator

本设备主要包括浓缩罐、冷凝器、汽液分离器、冷却器、集液器五部件，浓缩罐为夹套结构，冷凝器为列管式，冷却器为盘管式结构。本设备适用于制药、食品、化工等行业对料液的浓缩，并且可作为回收酒精和简单的回流提取之用。设备与物料接触部分均采用不锈钢制造，具有良好的耐腐性，符合GMP标准要求。

Detail Description

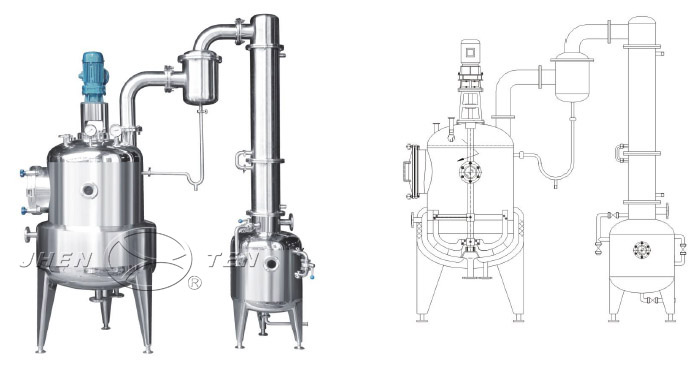

The device mainly includes concentration tank, condenser, gas-liquid separator, cooler and liquid receiving barrel. The concentration tank is of jacketed structure, the condenser of row-pipe type, the cooler of coiled type. The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc. and serves for the recycle of alcohol and simple reversed flow distillation as well. The contact part of the concentrator and the material is made with the stainless steel, resistant to corrosion and meeting the standard of the GMP standard.

Technical parameters

Model	ZN-100	ZN-200	ZN-300	ZN-500	ZN-700	ZN-1000	ZN-1500	ZN-2000
Evaporation capacity（kg/h）	45	60	76	100	125	165	350	450
Preassure in jacket（Mpa）	0.25
Vacuum degree（MPa）	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08
Heating area（㎡）	0.59	0.8	1.1	1.45	1.8	2.2	3.7	4.6
Condensation area（㎡）	1.7	2.4	3.0	3.3	3.6	4.1	15	20
Cooling area（㎡）	0.35	0.45	0.6	0.7	0.85	1.05	2.0	2.0
Dimensions(cm)	13575220	17080270	170100340	170100340	170100340	170100340	170100340	170100340
Weight（kg）	280kg	380kg	450kg	650kg	730kg	970kg	1220kg	1450kg
