Filtration Equipment

JTGJM Precision Liquid Filter

JTGJM Precision Liquid Filter

    Share to:

High Flow Sanitary Filter
JTGJM Precision liquid filter is a large flow and multi cartridges sanitary liquid filter, can meet the requirements...

Detail Description

The structure design and manufacture in accordance with the sanitary grade. It's no dead corner, meet " GMP" standard , easy to clean, drain thoroughly, no residual liquid.

For the application of some very harsh cleaning, the filter faceplate made of detachable, full angle cleaning


Feature

The ultra high level of polishing, the inner surface polished to 0.3μm Ra. the outer surface to reach 0.4μm, the absolute hygienic level polishing.
Dealing with large flow, compact design saves space
Side in bottom out of the design to ensure that the liquid medium can be completely emissions, at the same time using the tangent export options, making sewage discharge thoroughly, worker is easy to Operating
More than 15 cartridges filter housing can used the design of  swinging arm and eyebolt or quick open , easy to operating, economical and practical


Application

Pharmaceutical industry: all kinds of antibiotics and other liquid filtration.
Food and beverage industry: wine , mineral water, drinking water filtration.
Oil industry: oil field water injection filtration
Electronics industry: high purity water filtration
Chemical industry: all kinds of organic solvent, acid, lye filtration.


Surface Finish

Treatment Type

mechanical polishing,
electrolytic polishing

Polishing precision

Inner surface Ra≤0.4μm ,
Outside surface Ra≤0.6μm.


Operating Conditions

Max Operating pressure

0.6MPa、1.0MPa

Max Operating Temp.

150℃

Sterilization

Online or steam sterilization:
125℃/20 min


Material

Filter shell

304, 316L

Vent valve, drain valve

304, 316L

Eyebolt

304

Stabilizer blade

304

O-ring

EPDM, PTFE, Viton, Silicone


Connection

Shell connection

Flange (Eyebolt)

In-outlet N1, N2

quick-open

Pressure gauge N3 (optional)

1.5”quick-open

Vent valve N4
(optional)

1/2”Tri-clamp (less than 12 pcs)
1.5” Tri-clamp (More than 12 pcs)

Drain valve N5
(optional)

1/2” Tri-clamp (3pcs)
3/4” Tri-clamp (5pcs to 12pcs)
1” Tri-clamp  (More than 15pcs)

Cartridges connection

222 type, 226 type, DOE type

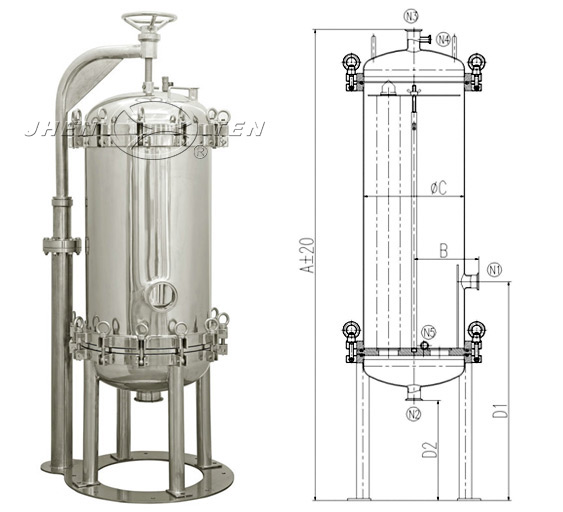

Structure

Dimension Parameters

3pcs(4pcs)

5pcs(6pcs)

20”

30”

40”

20”

30”

40”

A:Total height ( excluding pressure gauge)

1123

1373

1623

1145

1395

1645

B:The distance from inlet to center

142

165

C:diameter

Φ204

Φ250

D1:The height from inlet N1 to the ground

540

660

E:The height from outlet N2 to the ground

300

300

In-outlet N1, N2 dimension

1.5”/2”

1.5”/2”/2.5”


7pcs

8pcs

20”

30”

40”

20”

30”

40”

1145

1395

1645

1170

1420

1670

176.5

190

Φ273

Φ300

660

660

300

300

1.5”/2”/2.5”

1.5”/2”/2.5”/3”


9pcs(10pcs)

12pcs(11pcs)

20”

30”

40”

20”

30”

40”

1170

1420

1670

1170

1420

1670

202.5

215

Φ325

Φ350

660

660

300

300

1.5”/2”/2.5”/3”

1.5”/2”/2.5”/3”

The above-mentioned data is the standard, it can customize according to customer's requirements.

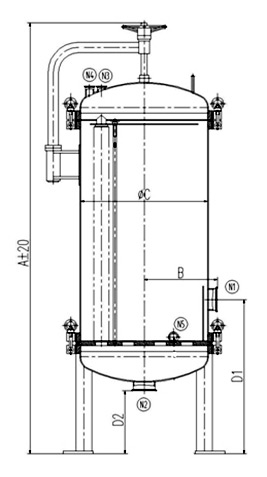

Structure


Dimension Parameters

15pcs(18pcs)

21pcs

24pcs(27/30pcs)

40”

40”

40”

A:Total height ( excluding pressure gauge)

1947

1959

2026

B:The distance from inlet to center

240

265

290

C:Diameter

Φ400

Φ450

Φ500

D1: The height from inlet N1 to the ground

682

694

714

D2:The height from outlet N2 to the ground

300

In-outlet N1, N2 dimension

3”/3.5”/4”


36pcs

42pcs

48pcs(54pcs)

40”

40”

40”

2036

2044

2067

315

340

365

Φ550

Φ600

Φ650

729

734

744

300

3”/3.5”/4”


56pcs

40”

2162

390

Φ700

808

350

3”/3.5”/4”

The above-mentioned data is the standard, it can customize according to customer's requirements.


Selection Table


[Qty. of cartridges]

[Model of cartridges]

[Cartridges connection]

[Shell material]

[In-outlet Connection]

[O-ring]

JTGJM

12R

20

S

4

K

E


3R=3pcs

21R=21pcs

20=20” cartridges

S=226 type

4= 304

K= Tri-clamp

E=EPDM


5R=5pcs

24R=24pcs

30=30” cartridges

T=222 type

6= 316L


P=PTFE


7R=7pcs

36R=36pcs

40=40” cartridges

D=DOE type



V=Viton


8R=8pcs

42R=42pcs





S=Silicone


9R=9pcs

48R=48pcs







12R=12pcs

56R=56pcs







15R=15pcs
