Filtration Equipment

Y-Type Filter

Y-Type Filter

    Share to:

Conveniently Replaceable Tube Filter

Detail Description

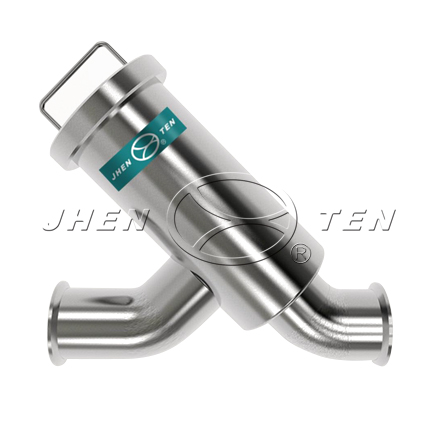

●JTGYG Y-Type Filter is a improved small tube strainer which can remove a small amount of solid particles in the liquid, also can protect compressor, pump, instruments and other equipment to work successfully.

●With reasonable design, JTGYG Y-Type Filter achieves advantages of no dead corner, low resistance and easy drainage. Filter adopts multiple polishing processing steps to ensure that the interface Ra reach to 0.4μm close to sanitary level. All of the surface is mirror polished.

Feature

●The filter inner and outside surface using mirror polish, interface Ra reaching to 0.4μmup to sanitary level.
●Filter housing adopts quick connection, easy to handle, economical and practical.


Application

●All kinds of liquid particle filtering.
●Edible oil, beverage, wine filtration.
●Chemical filter.
●Compressors, pumps, instrumentation and other equipment pre-filtering and protection.


Operating Conditions

Max operating pressure

0.6MPa、1.0MPa

Max operating temperture

150℃


Material

Shell

304、316L

Tube cartridge

304、316L

O-ring

三元乙丙橡胶、聚四氟乙烯

氟橡胶、硅橡胶


Connection

Connection of shell

Tri-clamp

N1、N2 In-outlet

2”/2.5”/3”Tri-clamp


Surface Finish

Finish type

Mechanical/electrolytical polishing, sand blasting

Polishing precision

Inner surface Ra≤0.4μm
Outside surface Ra≤0.6μm

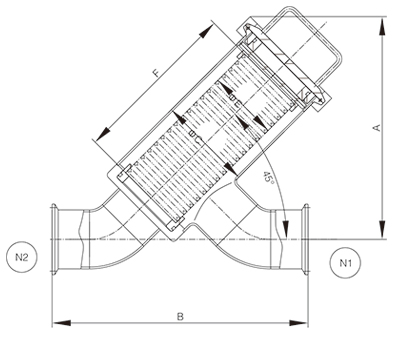

Dimension Parameters

In-outlet

1”

1.5”

2”

2.5”

A:Total height

185

240

B:The distance from inlet to center

220

275

C:Shell diameter

Φ76

Φ101.6

E:The diameter of the filter screen

Φ50

Φ76

F:The length of the filter screen

135

180

The above-mentioned data is the standard, it can be customized according to customer's requirements;length: mm.


Selection Table


[Qty. of cartridge]

[Shell Material]

[In-outlet connection]

[Dimension]

[O-ring]

JTGYG

1R

4

K

20

E


1R=1芯

4= 304

F=Flange

10=1”

E=EPDM



6= 316L

K=Tri-clamp

15=1.5”

P=PTFE




L=Screw thread

20=2”

V=Viton





25=2.5”

S=Silicone





30=3”
