● Multi-effect evaporation units (natural circulation/falling film/forced circulation), SUS304/316L/duplex steel/titanium materials for highly corrosive fluids

● Separators: Dual cyclone separation + wire mesh demister (steam purity ≥99.8%)

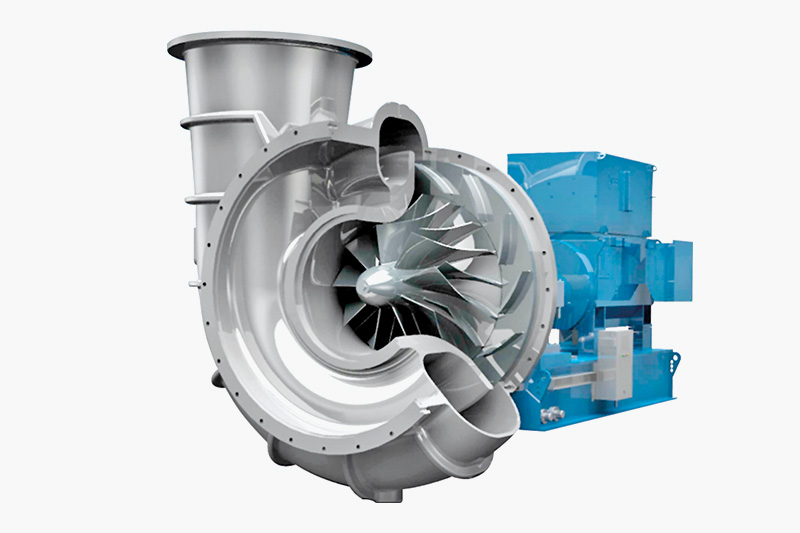

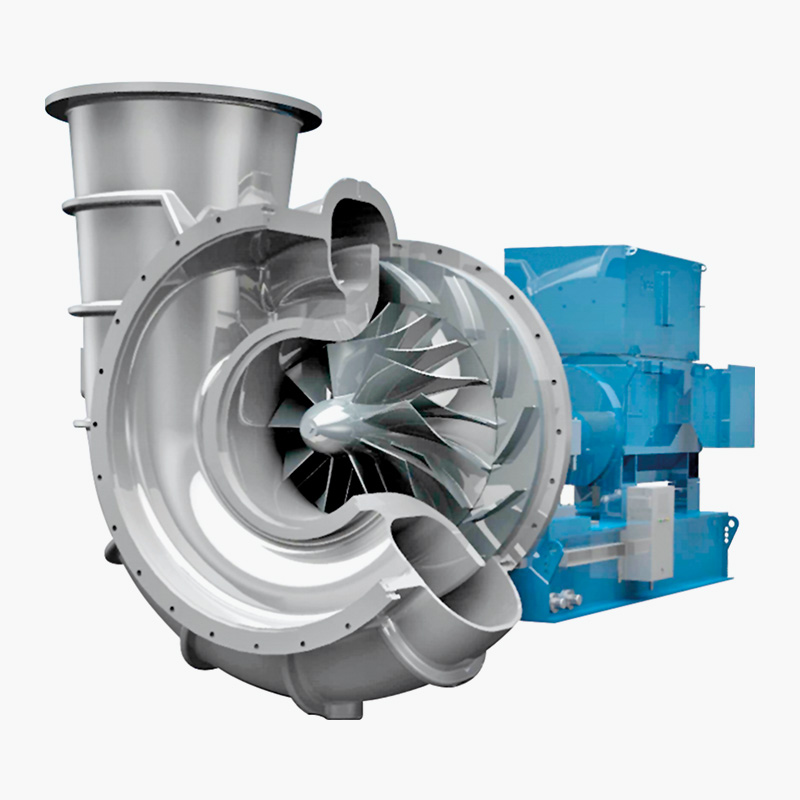

● MVR (Mechanical Vapor Recompression) heat pump unit, reducing energy consumption by 50–70%

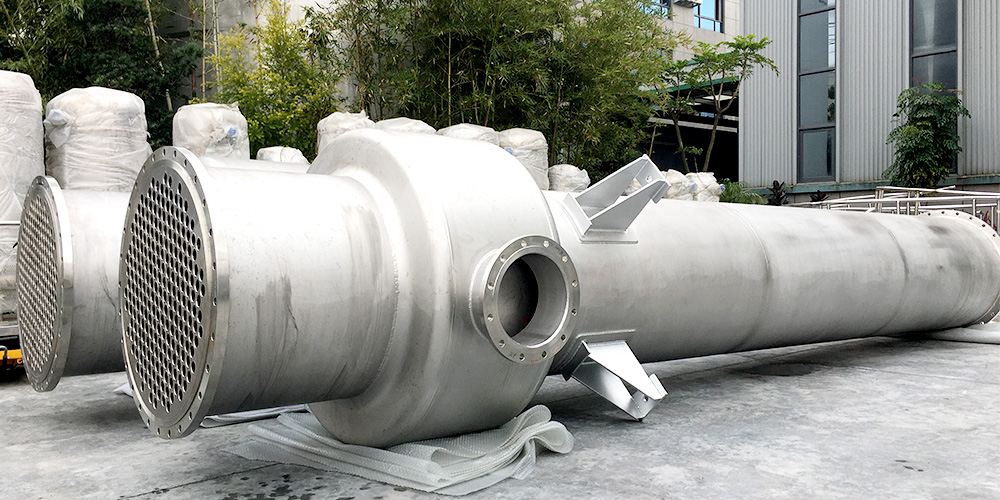

● Heat exchangers: Custom plate/tubular designs (heat transfer coefficient ≥3000 W/(m²·K))

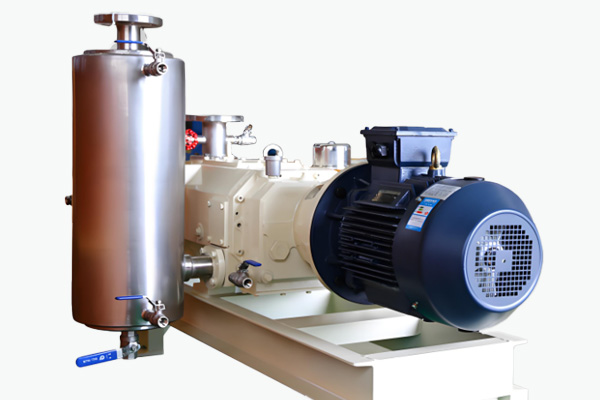

● Dry screw vacuum pumps (ultimate vacuum ≤5 kPa)

● Pressure stabilization system: PID automatic adjustment (±1% fluctuation)

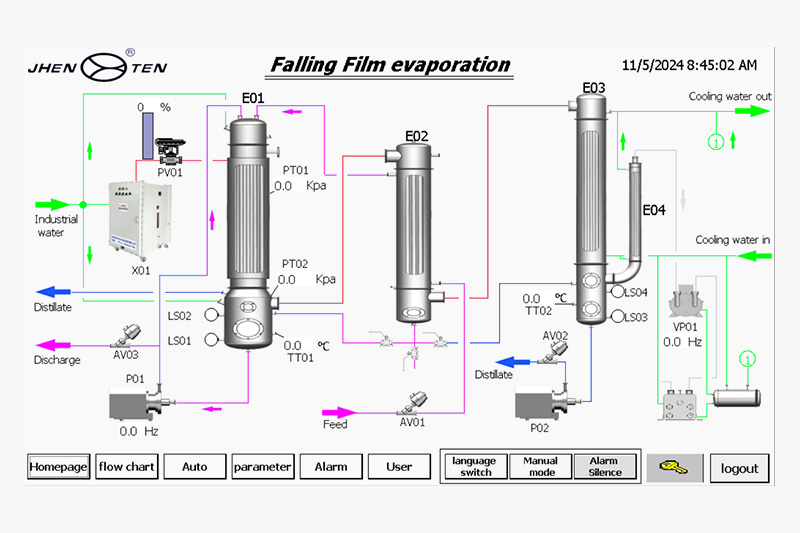

● PLC/HMI interface: Preloaded multi-mode evaporation curves (continuous/batch)

● OPC-UA protocol integration for MES/ERP connectivity

● CIP/SIP unit: Full-pipeline cleaning/sterilization compliant with ASME BPE standards

● Condensate recovery system: Heat reuse rate ≥85%

● Optional crystallization module: Centrifuge/thickener integration (crystal purity ≥95%)

Comprehensive operating cost, single effect is less than 60 yuan/ton, double effect is less than 40 yuan/ton (aqueous solution)

·Superior Quality: Utilizes vacuum low-temperature evaporation with short residence time, preserving product quality to the greatest extent.

·Energy Efficiency: Supports multi-effect evaporation or steam recompression technology, significantly improving energy utilization.

·Simplified Control: Rapid response and streamlined automation enable easy process management.

·Operational Flexibility: Features rapid startup, seamless switching between production and cleaning modes, and adaptability to varying conditions.

·Energy Saving & Low Consumption: No forced circulation pump required, reducing energy costs; low-temperature evaporation protects heat-sensitive components.

·Stable and durable: There are no moving parts, resulting in low maintenance costs. The corrosion-resistant materials are suitable for acidic, alkaline, and saline working conditions. Natural circulation helps to reduce scaling.

·Flexible adaptation: Available in single-effect or multi-effect combinations, with processing capacities ranging from 50 to 5000 L/h. Modular design allows for quick material switching. Intelligent control adjusts evaporation efficiency.

·Long-Term Stability: Flash evaporation occurs within the separator, minimizing scaling and sedimentation on heating surfaces, reducing tube fouling risks, and extending operational cycles.

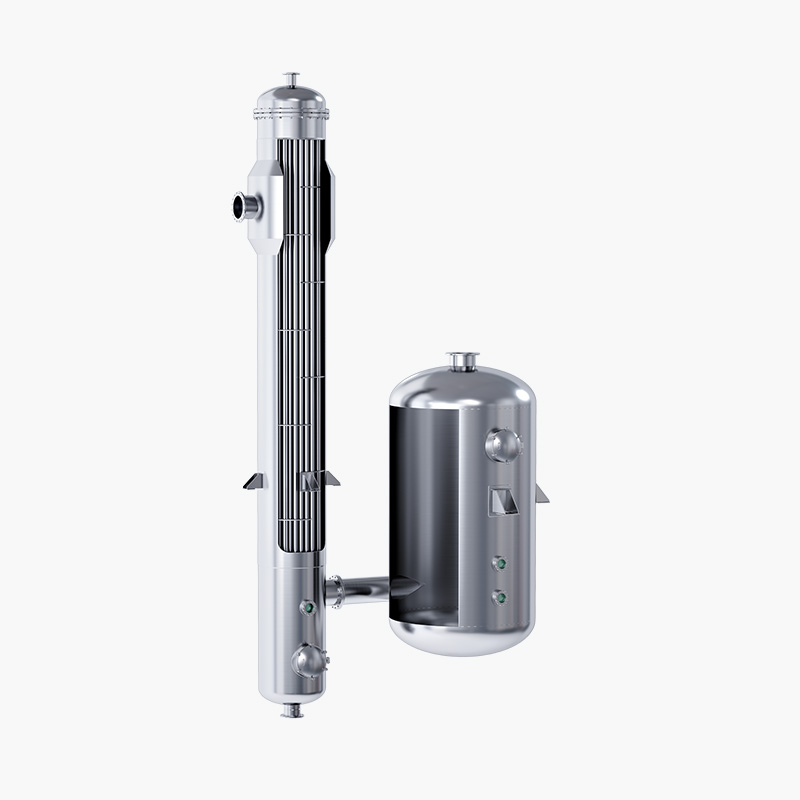

·High Heat Transfer Efficiency: The circulation pump precisely controls flow velocity, optimizing heat exchange surfaces for efficient and stable thermal transfer.

·Strong Adaptability: Handles high-viscosity, crystallization-prone, scaling-prone, and heat-sensitive materials.

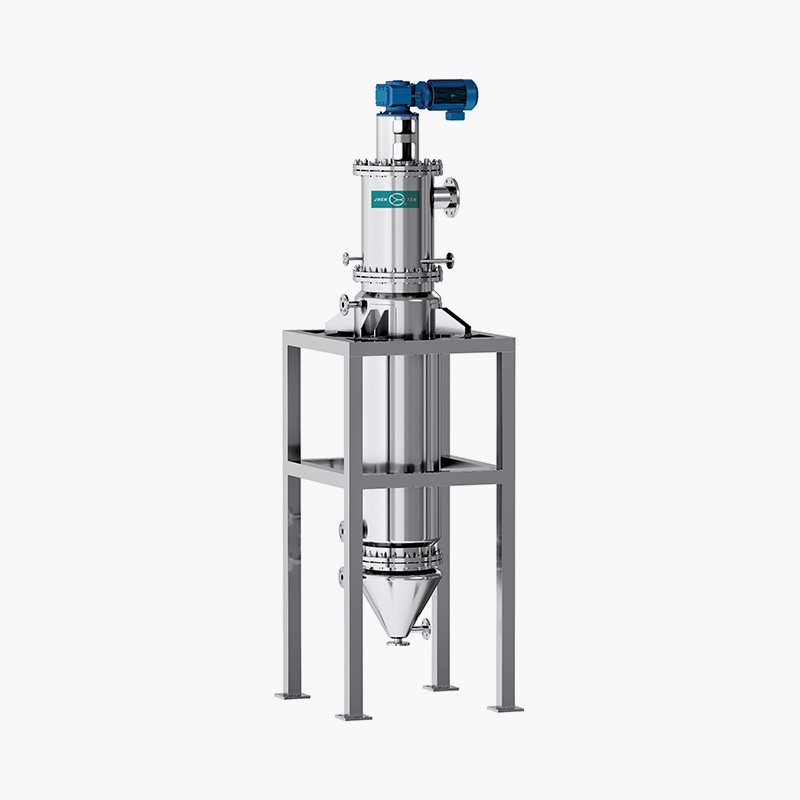

·Efficient Heat & Mass Transfer: Thin liquid film on the cylinder wall maximizes heat transfer area and coefficient.

·Operational Flexibility: Adjustable scraper speed, feed rate, and heating medium temperature to meet diverse requirements.

·Easy Maintenance: Simplified disassembly and cleaning reduce downtime and upkeep costs.

·Strong Adaptability: Suitable for high-viscosity, heat-sensitive, crystallization-prone, and scaling-prone materials.

·Efficient Heat & Mass Transfer: Ultra-thin liquid film maximizes heat transfer coefficient.

·Operational Flexibility: Adjustable parameters (scraper speed, feed flow rate, heating medium temperature) enable precise process control.

·Easy Maintenance: Modular design allows quick disassembly, cleaning, and upkeep.

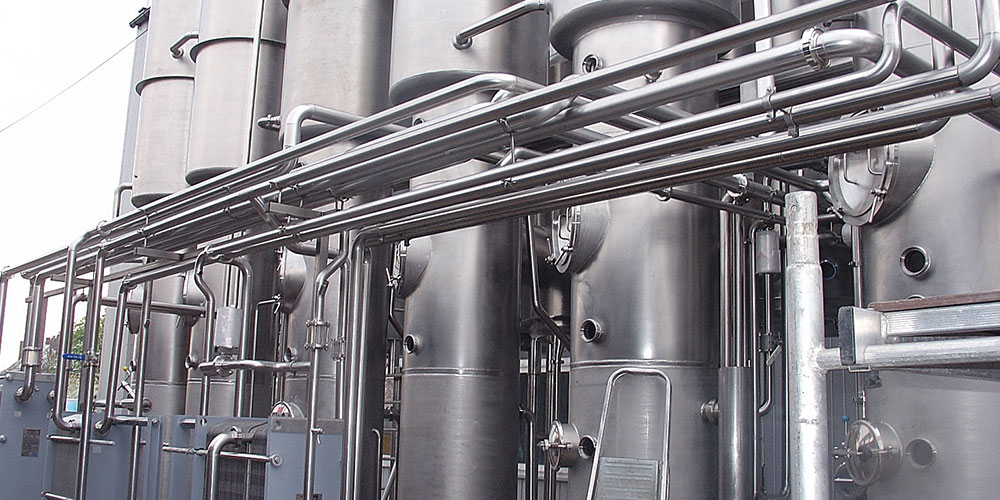

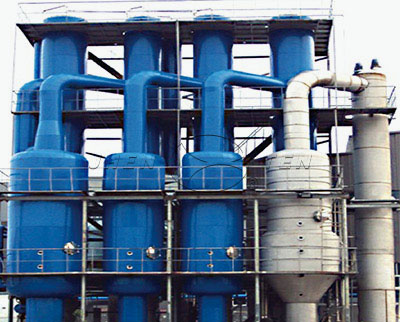

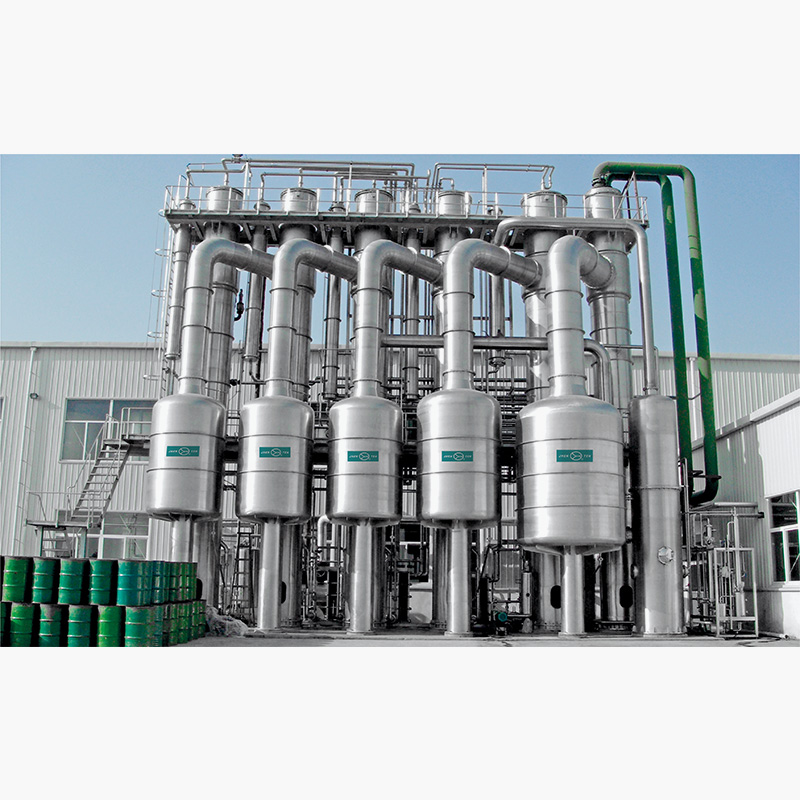

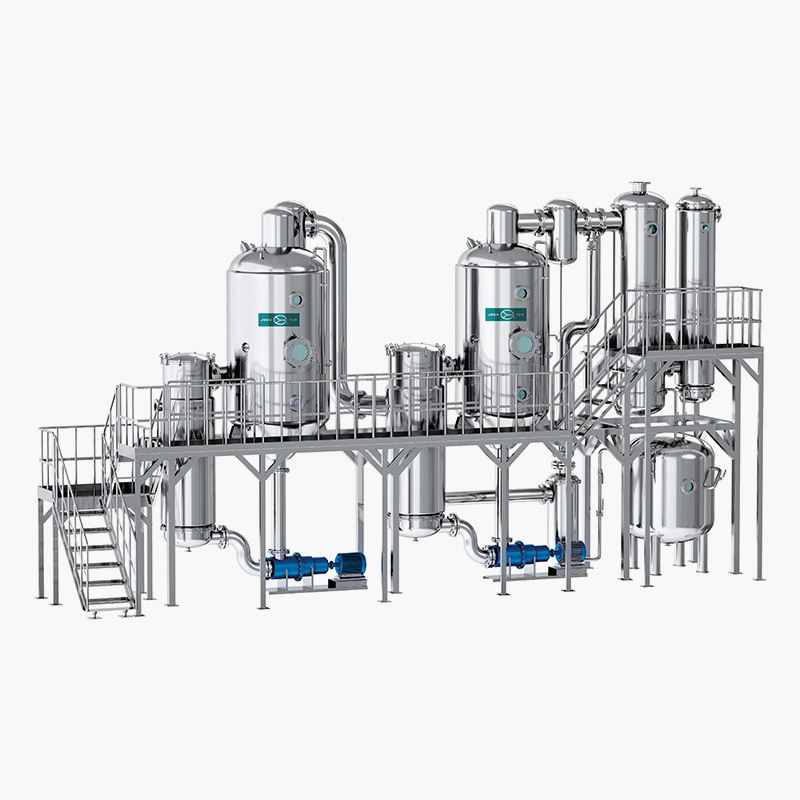

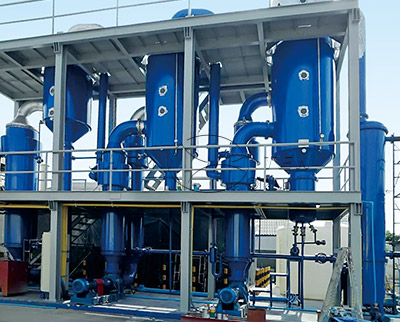

·Energy Efficiency: Multi-stage design reuses secondary steam, drastically reducing operational costs.

·Gentle Evaporation: Low-temperature, staged evaporation protects heat-sensitive materials (e.g., food, pharmaceuticals).

·Adaptability: Handles high-viscosity, scaling-prone, and high-solid-content solutions.

·Automated Control: Integrated PLC system monitors and adjusts temperature, pressure, concentration, and other parameters in real time.

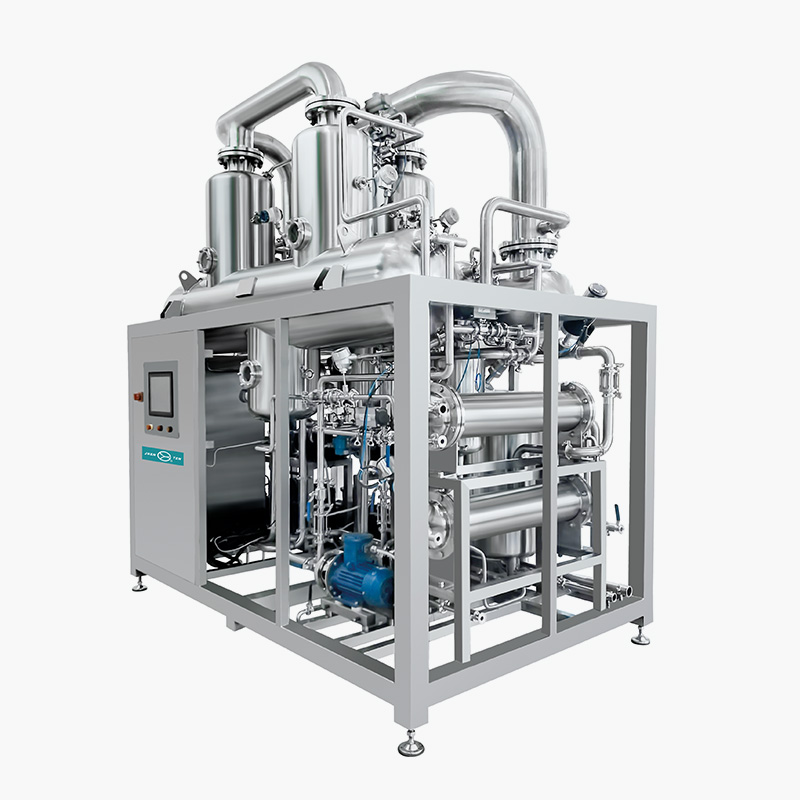

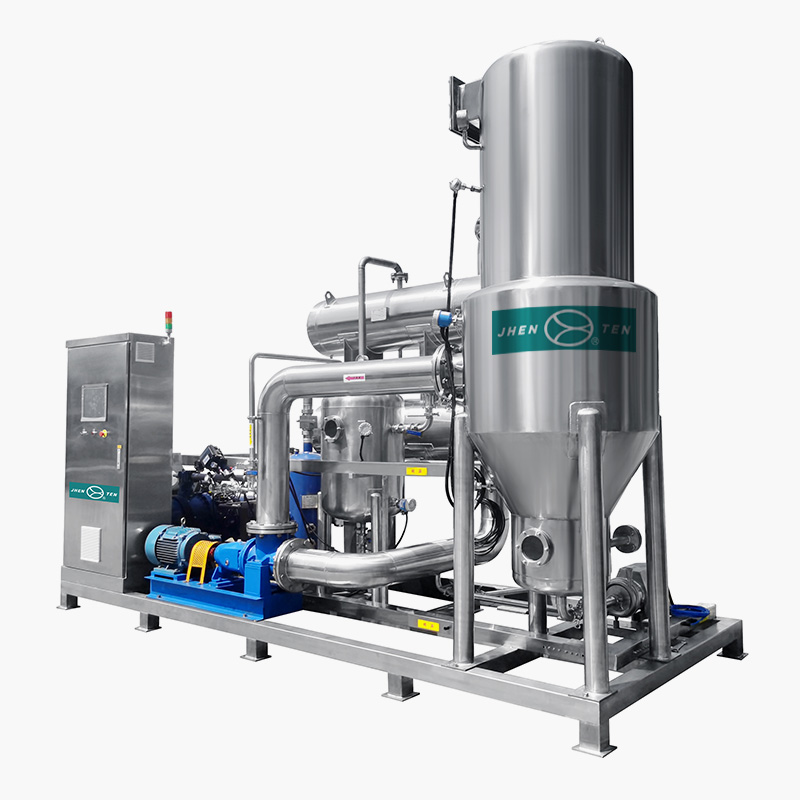

·Extreme energy saving: The heat energy utilization rate is >90%, saving 60%-80% more than multi-effect evaporation.

·Environmental and low-carbon: no boiler steam, wastewater reduction by 95%.

·Intelligent and stable: fully automatic adjustment of operating parameters.

·Compact and flexible: modular design, scalable (single or multi-effect combination).

·Ultra-low energy consumption: The energy consumption is only 30%-50% of traditional equipment.

·Low temperature evaporation: The working temperature can be as low as 30℃ to protect the thermally sensitive components.

·Environmental and clean: No boiler exhaust emissions, meets green production requirements.

·Intelligent control: fully automatic and precise adjustment.

·Compact design: modular design, small footprint.

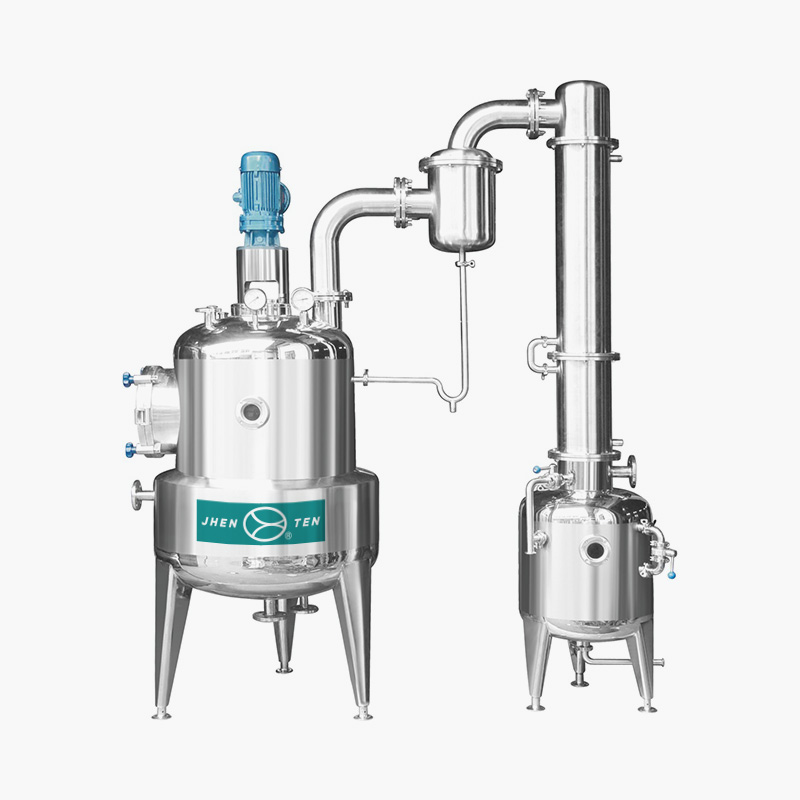

Full closed process, fast and low temperature evaporation;

Heating fast with high efficiency and hard to produce the deposit on the machine's inside wall;

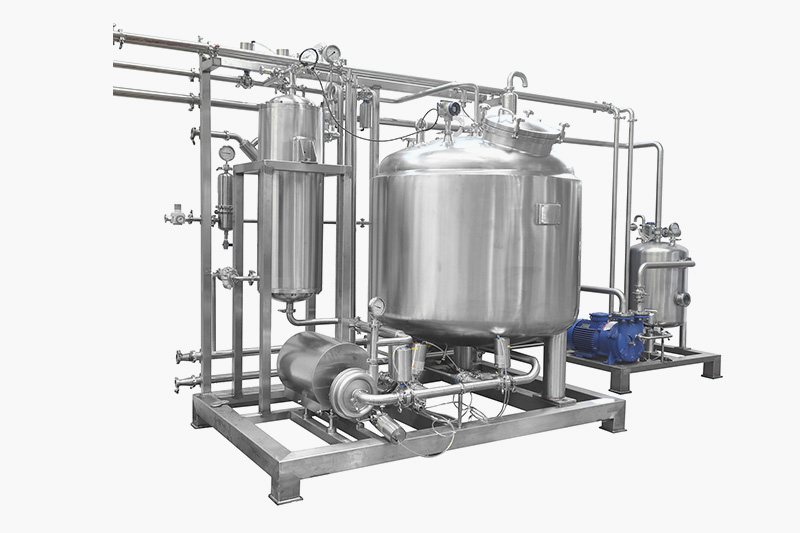

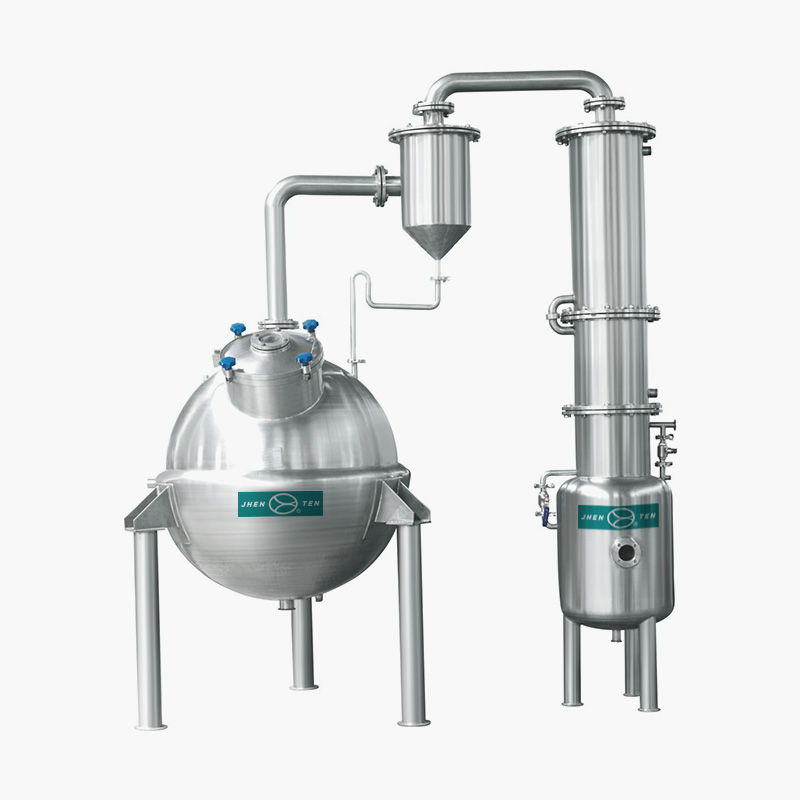

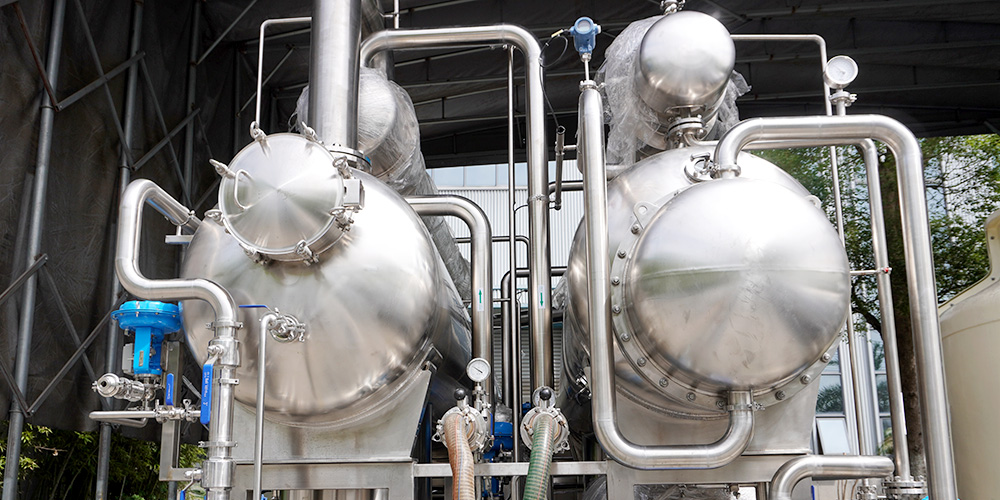

The spherical concentration tank, consisting of tank body, condenser, gas-liquid separator and liquid receiving barrel, is available to concentrate and distil the material liquid in such industries as pharmacy、food and chemistry and recycle the organic solvent.The adoption of reduced pressure concentration shortens the concentration time, avoiding the destruction to effective component inside the thermal sensitive material.

The contact part of the concentrator is made with the stainless steel, resistant to corrosion,high durable, meeting the standard of the GMP.

Resistant to corrosion and meeting the standard of the GMP standard.

The concentrating time is short and the evaporating speed is high, which can better protect the heat sensitive materials from being damaged.

Applicable to the evaporation of material has properties of low fluidity, fouling(ketchup, peach jam, apricot jam, carrot jam, apple jam, kiwi fruit jam etc).

Full closed process, fast and low temperature evaporation;

Heating fast with high efficiency and hard to produce the deposit on the machine's inside wall;

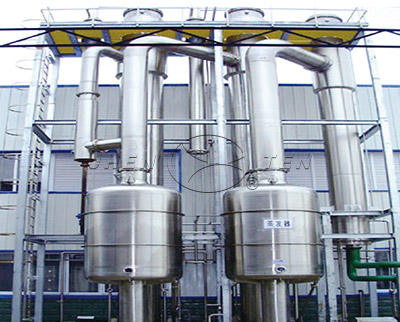

Adopts twin effects type, high use efficiency of steam, low energy consumption;

Full closed process, fast and low temperature evaporation; so the nature color and flavor and smell remained.

Crystal slurry circulating continuous crystallzer. Operation, liquid from the lower circulation pipe to join and leave the crystal room at the bottem of the crystal slurry mixture sent to the heating chamber by the pump.

Evaporative crystallizer is a vaporizer. Construction and operation identical with the evaporator, the solvent was evaporated by heating under reduced pressure, after which the solution has reached satiety crystallized.

Full closed process, fast and low temperature evaporation;

Heating fast with high efficiency and hard to produce the deposit on the machine's inside wall;

The spherical concentration tank, consisting of tank body, condenser, gas-liquid separator and liquid receiving barrel, is available to concentrate and distil the material liquid in such industries as pharmacy、food and chemistry and recycle the organic solvent.The adoption of reduced pressure concentration shortens the concentration time, avoiding the destruction to effective component inside the thermal sensitive material.

The contact part of the concentrator is made with the stainless steel, resistant to corrosion,high durable, meeting the standard of the GMP.

Resistant to corrosion and meeting the standard of the GMP standard.

The concentrating time is short and the evaporating speed is high, which can better protect the heat sensitive materials from being damaged.

Applicable to the evaporation of material has properties of low fluidity, fouling(ketchup, peach jam, apricot jam, carrot jam, apple jam, kiwi fruit jam etc).

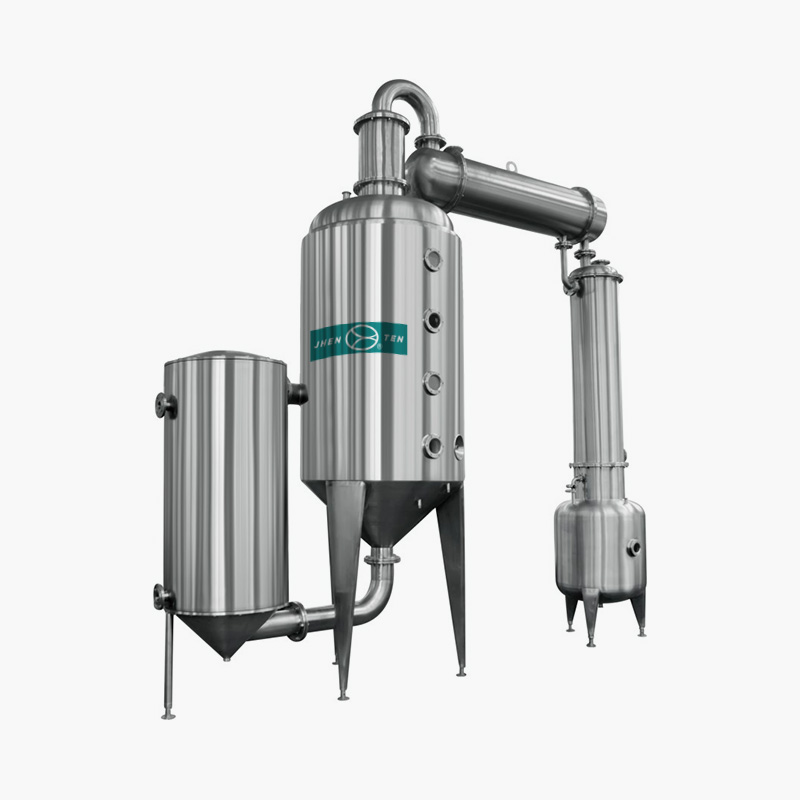

Full closed process, fast and low temperature evaporation;

Heating fast with high efficiency and hard to produce the deposit on the machine's inside wall;

Adopts twin effects type, high use efficiency of steam, low energy consumption;

Full closed process, fast and low temperature evaporation; so the nature color and flavor and smell remained.

Crystal slurry circulating continuous crystallzer. Operation, liquid from the lower circulation pipe to join and leave the crystal room at the bottem of the crystal slurry mixture sent to the heating chamber by the pump.

Evaporative crystallizer is a vaporizer. Construction and operation identical with the evaporator, the solvent was evaporated by heating under reduced pressure, after which the solution has reached satiety crystallized.

Comprehensive operating cost, single effect is less than 60 yuan/ton, double effect is less than 40 yuan/ton (aqueous solution)

·Ultra-low energy consumption: The energy consumption is only 30%-50% of traditional equipment.

·Low temperature evaporation: The working temperature can be as low as 30℃ to protect the thermally sensitive components.

·Environmental and clean: No boiler exhaust emissions, meets green production requirements.

·Intelligent control: fully automatic and precise adjustment.

·Compact design: modular design, small footprint.

·Extreme energy saving: The heat energy utilization rate is >90%, saving 60%-80% more than multi-effect evaporation.

·Environmental and low-carbon: no boiler steam, wastewater reduction by 95%.

·Intelligent and stable: fully automatic adjustment of operating parameters.

·Compact and flexible: modular design, scalable (single or multi-effect combination).

·Energy Efficiency: Multi-stage design reuses secondary steam, drastically reducing operational costs.

·Gentle Evaporation: Low-temperature, staged evaporation protects heat-sensitive materials (e.g., food, pharmaceuticals).

·Adaptability: Handles high-viscosity, scaling-prone, and high-solid-content solutions.

·Automated Control: Integrated PLC system monitors and adjusts temperature, pressure, concentration, and other parameters in real time.

·Superior Quality: Utilizes vacuum low-temperature evaporation with short residence time, preserving product quality to the greatest extent.

·Energy Efficiency: Supports multi-effect evaporation or steam recompression technology, significantly improving energy utilization.

·Simplified Control: Rapid response and streamlined automation enable easy process management.

·Operational Flexibility: Features rapid startup, seamless switching between production and cleaning modes, and adaptability to varying conditions.

·Energy Saving & Low Consumption: No forced circulation pump required, reducing energy costs; low-temperature evaporation protects heat-sensitive components.

·Stable and durable: There are no moving parts, resulting in low maintenance costs. The corrosion-resistant materials are suitable for acidic, alkaline, and saline working conditions. Natural circulation helps to reduce scaling.

·Flexible adaptation: Available in single-effect or multi-effect combinations, with processing capacities ranging from 50 to 5000 L/h. Modular design allows for quick material switching. Intelligent control adjusts evaporation efficiency.

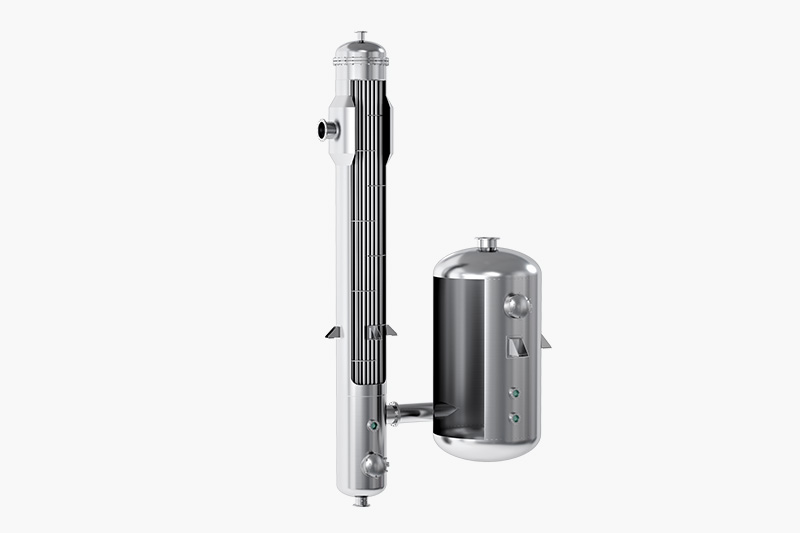

·Long-Term Stability: Flash evaporation occurs within the separator, minimizing scaling and sedimentation on heating surfaces, reducing tube fouling risks, and extending operational cycles.
