Evaporative concentrator

FALLING FILMEVAPORATOR

Consult Now

Overview

FALLING FILMEVAPORATOR(图1)

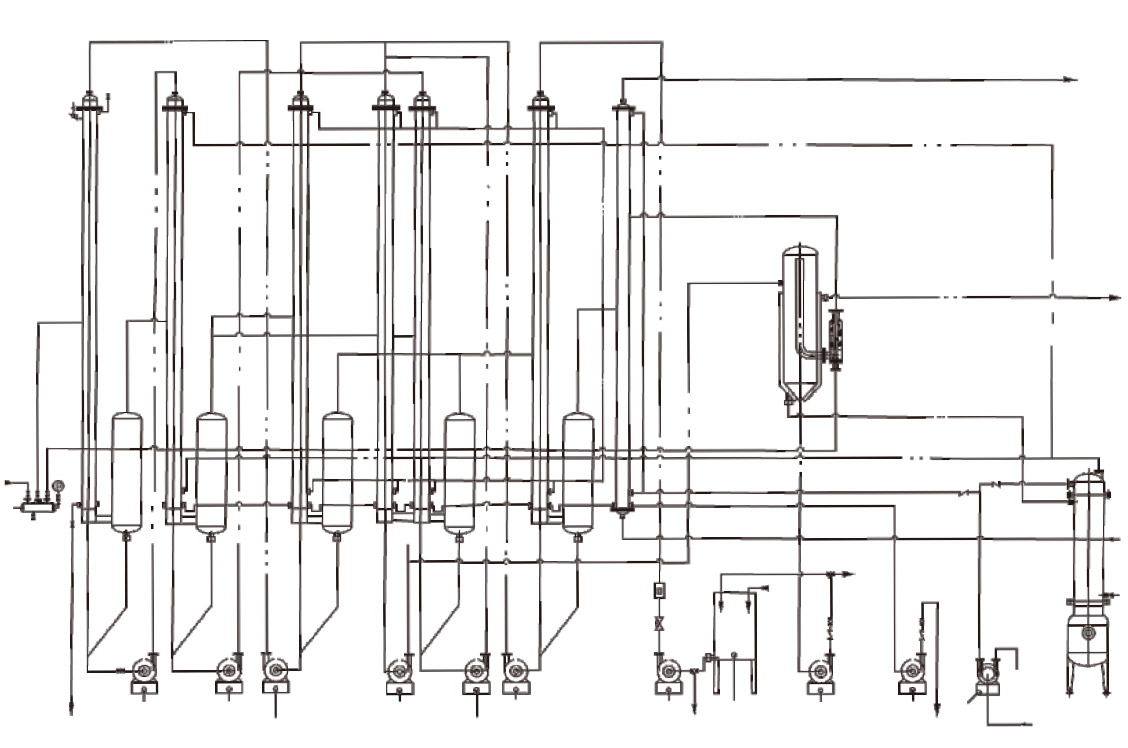

Multi-Effect Falling Film Evaporator Flow Diagram

FALLING FILMEVAPORATOR(图2)



Technical Parameter


Model

Double-effect

Triple-effect

Four-effect

Five-effect

Water evaporating capacityKg /h

1200-4000

3600-15000

8000-50000

10000-65000

Feed Material Density%

According to material

Discharge MaterialDensity%

According to material

Steam pressure Mpa

0.5~0.8

Steam consumptionKg /kg evaporation amount(with heat pressure pump)

0.38

0.28

0.23

0.19

Evaporating temperature℃

45~90

Sterilizing temperature℃

90~110

Cooling water costT/T evaporation amount
(Inputtingwater20℃,outputting water40℃)

11

8

7

6

Note:We can design and manufacture according to customers special requirement.
