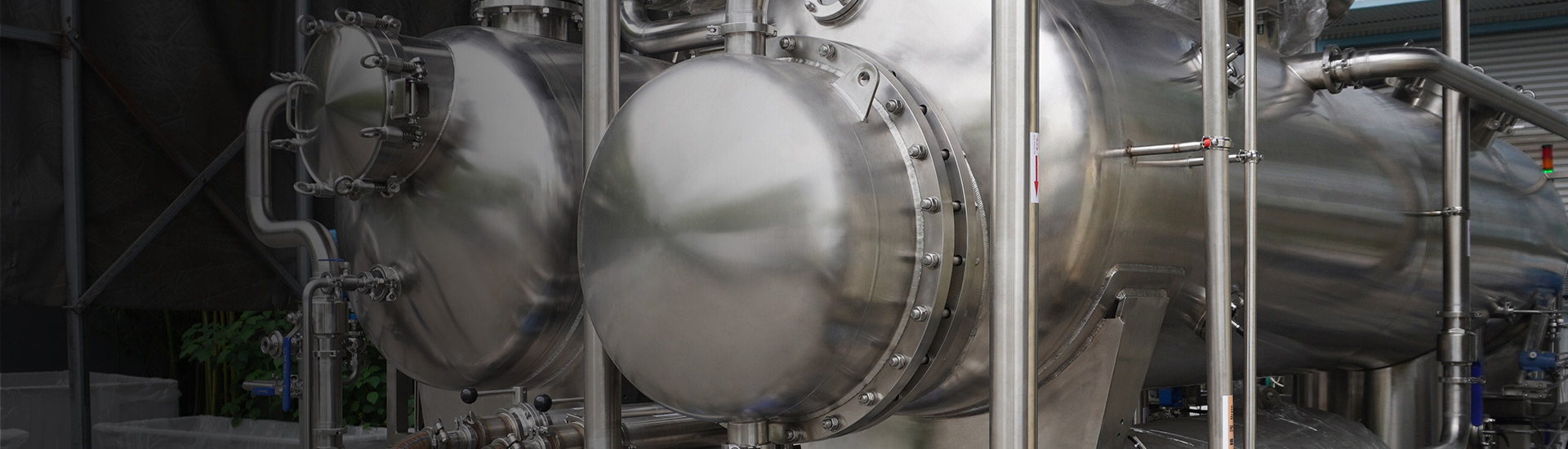

SuperVaper Ultra-low temperature evaporation system_stainless steel storage tank|Reactor|multi-function extractor manufacturers-JHENTEN MACHINERY CO.,LTD.

Overview

Advantages

◆Use advanced heat pump technology combined with falling film evaporation process, low operate and maintenance cost;
◆Various material option such as SS304/316/2205/TA/Hastelloy, can be used for high chloride or fluoride liquid, meet special and strict application
◆Use vortex or screw pump compressor for heating and cooling refrigerant (refrigerant can be option for R134a,R404A,R507)
◆Automatic cleaning system control by PLC program to realize online cleaning and meet GMP requirements;
◆Horizontal type falling film evaporation, high efficiency, short residence time, not easy to scale, suitable for evaporation and concentration of heat-sensitive materials;
◆Siemens PLC control and HMI interface, realize continuous feed and discharge, all units are automatic control, one-button operation, simple and reliable(for less than 500KG/H throughput)
◆Modular skid, compact structure, small occupation space, can realize skid-mounted work

◆Remote control module, can realize the Internet of things, mobile phone visualization and alarm functions No external cooling water, steam, only power.

Technical Parameter

Main technicalparameters-single effect (aqueous solution)

Specification	SV-5.0	SV-10	SV-15	SV-20	SV-30	SV-50	SV-80	SV-100	SV-150	SV-200	SV-300
Water evaporatecapacity (kg/h)	30	100	150	200	300	500	800	1000	1500	2000	3000
Heat pump shaft power(kw/h)	3.75	7.5	11.25	15.0	22.5	37.5	60.0	75.0	112.5	150	225
Refrigerant heat temp(°C)	45
Evaporate tempe(°C)	32
Vacuum (-Mpa)	0.0966
Liquid discharge(t) temp.	32
Liquid dischargeconcentration (%)	（According to material properties）
Condensate watertemp.	30
Condensate water flow(kg/h)	30	100	150	200	300	600	800	1000	1500	2000	3000
Condensation temp(t)	15
Total power (kw/h)	5.5	10.5	14.5	19.5	27.5	44.5	67.0	85.0	120.5	162.0	235.0
Dimension	2.221.5	2.521.8	322.0	322.0	32.52.2	332.5	3.532.5	3.53.53	3.83.53.2	4.04.53.5	5.54.54.0

Main technical parameters-double effect (aqueous solution)

Specification	SVD-20	SVD-30	SVD-50	SVD-80	SVD-100	SVD-150	SVD-200	SVD-300	SVD-500	SVD-800	SVD-1000
Water evaporatecapacity(kg/h)	200	300	500	800	1000	1500	2000	3000	5000	8000	10000
Heat pumpshaft power(kw/h)	7.6	11.4	19.0	30.4	38.0	57.0	76.0	114.0	190.0	304.0	380.0
Primaryrefrigerant heat temp (°C)	50
Primaryevaporate temp (°C)	42
Primary chamber vacuum(-Mpa)	0.093
Secondaryrefrigerant heat temp.(°C)	42
Secondaryevaporate temp (°C)	31
Secondary chamber vacuum(-Mpa)	0.0965
Liquid dischargetemp (°C)	31
Liquid dischargeconcentration(％)	（According to material properties)
Condensate water temp (°C)	28
Condensate water flow(kg/h)	200	300	500	800	1000	1500	2000	3000	5000	8000	10000
Condensation temp (°C)	15
Total power	11.0	18.0	22.5	39.4	47.0	67.0	86.0	97.0	205.0	322.0	405.0
Dimension	3.532	42.52.2	442.5	4.242.5	4.543	5.554	6864.5	8.576	1187	1599	18912
