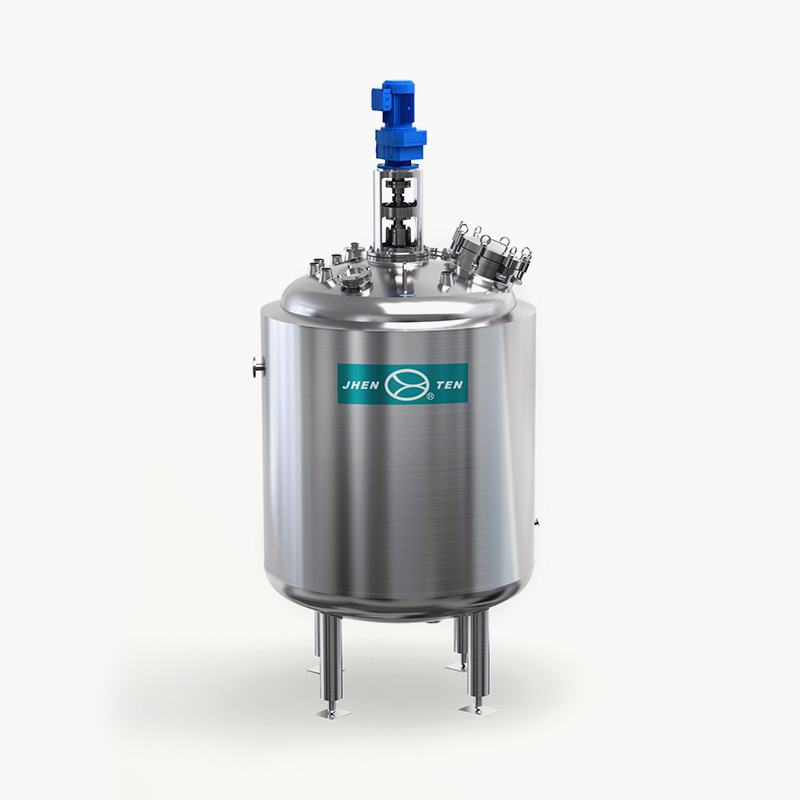

Biological Fermentation Tank

Consult Now

Overview

Feature

• There are 600L~20000L varietys of specifications, it can be designed, customized according to the customers' requirements.
• Jacket can put into steam (or hot water), jacket is divided into coil jacket,full jacket, dimple jacket; Jacketed outside covered with insulation layer, insulation material is rock wool (keep warm) or PU (keep cold).
• Connector use fast installation chuck(clamp), inner tank use SS304 or SS316L, the inner surface mirror polishing Ra≤0.28μm～0.6μm, outer surface can be polishing, wiredrawing ,sandblasting according to customer's requirement.

Application

Suitable for medicine, biological products, dairy products, food, brewing, beverage, personal care products industries etc.

Technical Parameter

Parameters		Model	JTRSF—600	JTRSF—1000	JTRSF—2000	JTRSF—3000	JTRSF—4000	JTRSF—5000
Effectivevolume：L			600	1000	2000	3000	4000	5000
Barrel	Diameter：mm		Φ900	Φ1100	Φ1300	Φ1600	Φ1700	Φ1800
Barrel	Height：mm		900	1000	1500	1500	1800	1800
Mixing	Motor power：kW		1.1	1.5	2.2	2.2	3	4
Mixing	Mixing work RPM：r/min		60（The design canbe adjusted according to customers’ usage）

JTRSF—6000	JTRSF—8000	JTRSF—10000	JTRSF—12000	JTRSF—15000	JTRSF—20000
6000	8000	10000	12000	15000	20000
Φ1900	Φ2000	Φ2200	Φ2400	Φ2600	Φ2800
2000	2200	2400	2500	2700	3000
4	5.5	7.5	7.5	11	11
60（The design canbe adjusted according to customers’ usage）
Theabove-mentioned data is the standard ,for reference only. it can customizeaccording to customer's requirements.
